Muto KF Blower
 |

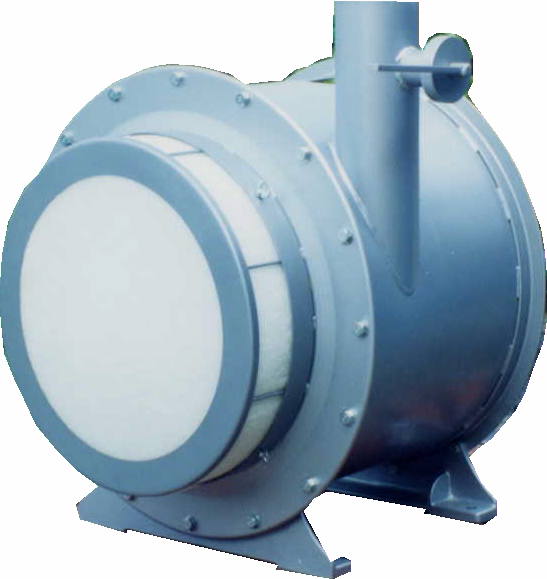

Muto KF Blower is made of sheet metal and is a multistage turbo blower that is developed for supply of combustion air. The characteristic of flow and pressure is the flat curve that is suitable for furnace. If the volume varies, the pressure varies a little. Air filter and damper are built in and a rubber sleeve joint is attached. As a result, they are economical and easy to pipe. |
 |
●Standard Air filter and damper are built in and rubber sleeve joint is attached. The characteristic of flow and pressure is the flat curve that is suitable for furnace. |
 |
●Low Noise Model (L type） This type is designed to reduce air suction and motor noise. The motor is inserted into a casing with an inner padding of noise- absorbing material. As a result, the noise level is 10～15dB(A) lower than the standard model. |
 |
●Silencer Attached Model (S type) S type is designed to fix the filter silencer on the inlet. The noise level is 4～9dB(A) lower than the standard type. It is also available for outdoor use. |
●Specification
|
|
Standard | Special | |
| Installation Location | Indoor | Outdoor（S type only） | |
| Inlet Temperature | -15ﾟC～40℃ | ||
| Gas | Air | ||
| Motor | Type | Totally Enclosed Fan-Cooled | |
| Frequency | 50/60Hz | ||
| Voltage(Phase) | 200/220V(3-Phase) | Notice if you use at different voltage | |
| Pole | 2P | ||
|
Color
|
silver | ||
.
