Muto Wide Blower
 |

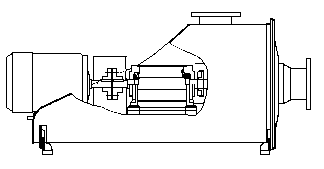

Muto Wide Blower is made of sheet metal and is a systemized multistage turbo blower. There are more than 1700 standard models. We confidently present the outline drawing and estimated performance curves. |
|
●S Type The impellers are directly mounted on the extended motor shaft. These are compact and require much less maintenance. |
 |
|
●H Type The blower shaft and motor are coupled with flexible coupling. The size is larger than S type, but these are available in various capacities within the Muto specification range. |
 |
|
●HH Type This is the belt drive model that the motor mounted on the blower casing. Although the size is small, high pressure is generated. |
 |
|
●HL Type The blower and motor are placed side by side on the common base. These are more customizable than HH model. |
 |
●Specification
|
|
Standard | Special | |
| Installation Location | Indoor | Outdoor | |
| Inlet Temperature | -20ﾟC～50℃ | Heat-resistance Type:-20～200ﾟC | |
| Gas | Air | ||
| Motor | Type | Totally Enclosed Fan-Cooled | |
| Frequency | 50/60Hz | ||
| Voltage(Phase) | 200/220V(3-Phase) | Notice if you use at different voltage | |
| Pole | HL&HH Type 4P | ||
| S&H Type 2Ｐ | |||
|
Color
|
Silver | ||
.
