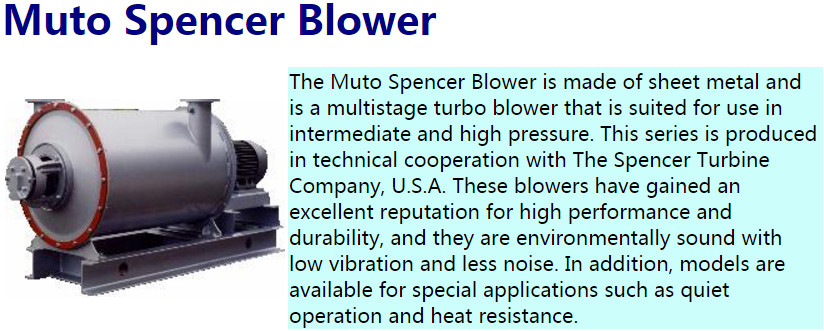

Muto Spencer Blower
Home > Fluid Machinery > Blower > Muto Denki >
●Performance
| Volume | ～200m3/min |
| Pressure | -41.2～+68.6kPa |
| Power | 0.75～150kW |
|

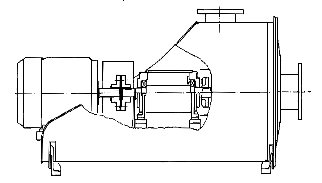

●SOH Type This is the basic Spencer Blower. Since the impellers are mounted directly on the extended motor shaft, it is compact and requires much less maintenance. |
 |
|

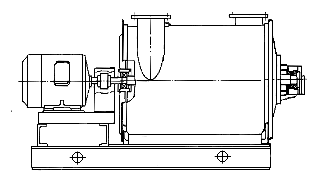

●4BOH Type The blower shaft and motor are coupled with flexible coupling. This is an overhang blower that a general-purpose motor is available for. |
 |
|
●4BOB Type This is direct drive model like 4BOH, but the impellers for this type are mounted between two supporting bearings. As a result, this model is suited to multistage construction and for applications that require higher pressure. |
 |
●Specification
|
|
Standard | Special | |
| Installation Location | Indoor | Outdoor | |
| Inlet Temperature | -20ﾟC～50℃ | -20～300ﾟC A part of kind is cxcluded | |
| Gas | Air | ||
| Motor | Type | Totally Enclosed Fan-Cooled | |
| Frequency | 50/60Hz | ||
| Voltage(Phase) | 200/220V(3-Phase) | Notice if you use at different voltage | |
| Pole | SOH,4BOH,4BOB Direct&Coupling Driven Type 2P | ||
| 4BOB Belt Driven Type 4Ｐ | |||
|
Color
|
Silver | ||
.
