Flange blower
Model KF-50/100/200/400 / MF-750E / 1500E / 2200E
- A dedicated motor with unique design and a high-performance fan generate the maximum wind pressure and air volume while it is small and lightweight.
- There is no worry about complicated maintenance due to adopting a fully closed type for the motor and a sealed type for the bearing.
- The refined design boasts a smart appearance and a robust structure.
Main applications
Delivery wind
Cooling / ventilation / exhaust / exhaust dust smoke of industrial machinery such as plastic molding processing / cleaning / food / packaging.
Dust collection
Collection of dust / fine powder particles in polishing · cement · milling · tea · lumber · spinning factory.
Catalog download
Flange blower
Specification (3 phases 200 V)
※ Nikanshimashite Dimensions and CAD data, this page please visit.
| Form |
Diameter (mm) |
Output (kW) |
Power supply voltage (V) |
Frequency (Hz) |
Current (A) |
Rotation speed (min -1 ) |
Maximum wind pressure (kPa) |
Maximum air flow rate (m 3 / min) |
Mass Quantity (kg) |
|---|---|---|---|---|---|---|---|---|---|
| KF-50 | Φ50 | 0.05 | 3φ 200 | 50 | 0.31 | 2950 | 0.29 | 2.2 | Four |
| 60 | 0.28 | 3510 | 0.42 | 2.6 | |||||
| KF-100 | 65 × 65 | 0.1 | 50 | 0.56 | 2900 | 0.34 | 5.5 | 8 | |
| 60 | 0.53 | 3475 | 0.5 | 6.5 | |||||
| KF-200 | 72 × 75 | 0.2 | 50 | 0.9 | 2900 | 0.52 | 7.5 | Ten | |
| 60 | 3470 | 0.75 | |||||||
| KF-400 | 100 × 102 | 0.4 | 50 | 1.9 | 2850 | 0.6 | 15 | 16 | |
| 60 | 3350 | 0.83 | |||||||
| MF-750E | 110 × 120 | 0.75 | 50 | 3.2 | 2870 | 1.0 | twenty three | twenty three | |
| 60 | 3.0 | 3445 | |||||||
| MF-1500E | 140 × 160 | 1.5 | 50 | 5.6 | 2865 | 1.1 | 35 | 31 | |
| 60 | 3435 | ||||||||
| MF-2200E | 165 × 175 | 2.2 | 50 | 8.3 | 2890 | 1.4 | 40 | 35 | |
| 60 | 8.1 | 3465 | 1.6 |

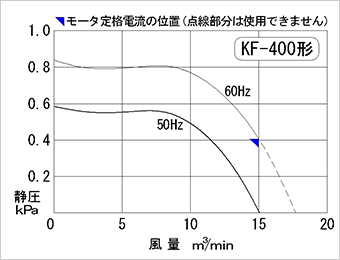

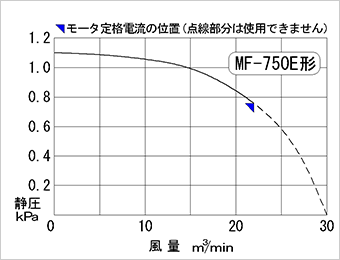

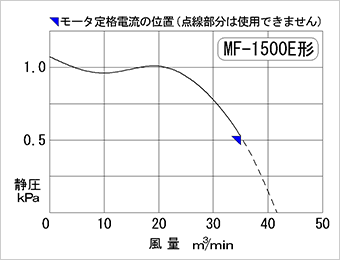

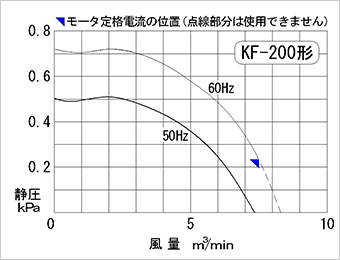

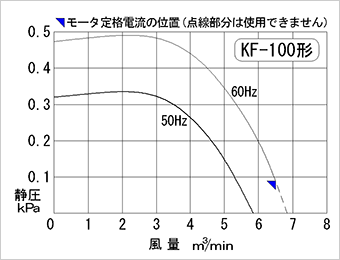

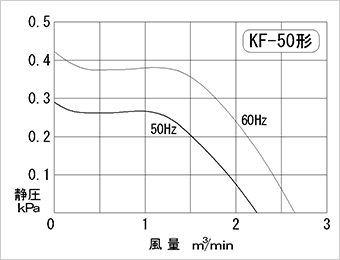

Performance curve
