Nishimura Multi-blade blower NB-75 / NE-5/6 / 8E / 15E / 20E

Model NB-75 / NE-5/6 / 8E / 15E / 20E

From superb design and many years of research, the combination of multi-wing type fan and dedicated motor generates minimum power consumption, maximum wind power with rotation sound.
There is no worry of cumbersome maintenance due to the use of a unique fully closed fan motor and sealed bearings.
The refined design boasts a smart appearance and a robust structure.

Buildings (buildings, factories, warehouses, theaters, hospitals, hotels), vehicles, vessels, synthetic chemistry, food factories and so on.

Various burners, incinerators, milling, ice making, gas pressure pumping at the glass factory.

Recovery of dust fine particles and debris in polishing · cement · milling · tea · lumber · woodworking, spinning factories etc.

Multi-blade type air supply and exhaust aircraft

※ Nikanshimashite Dimensions and CAD data, this page please visit.

Form	Diameter (mm)	Output (kW)	Power supply voltage (V)	Frequency (Hz)	Current (A)	Rotation speed (min ^-1 )	Maximum wind pressure (kPa)	Maximum air flow rate (m ³ / min)	Mass Quantity (kg)

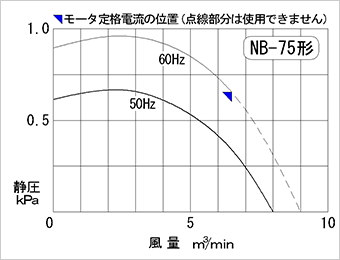

NB-75	Φ 75	0.21	3φ 200	50	1.1	2890	0.68	8.0	Ten
NB-75	Φ 75			60	1.0	3460	0.95	6.5	Ten

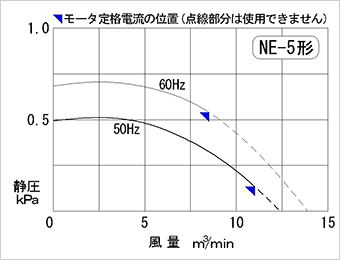

NE-5	Φ 101			50	1.1	2890	0.5	11	12
NE-5	Φ 101			60	1.0	3460	0.7	7	12

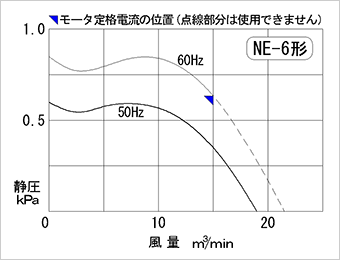

NE-6	122 × 135	0.4		50	1.9	2900	0.6	18	16
NE-6	122 × 135	0.4		60	1.7	3475	0.8	15	16

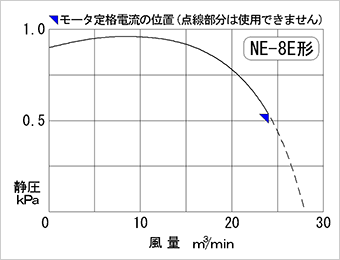

NE - 8 E	146 × 164	0.75		50	3.1	2850	0.9	twenty four	twenty two
NE - 8 E	146 × 164	0.75		60	3.0	3420	0.9	twenty four	twenty two

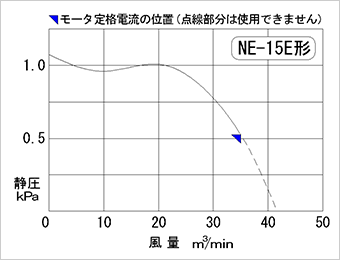

NE - 15 E	148 × 168	1.5		50	5.6	2865	1.1	35	33
NE - 15 E	148 × 168	1.5		60	5.6	3435	1.1	35	33
NE-20 E	174 × 184	2.2		50	8.3	2890	1.4	40	39
NE-20 E	174 × 184	2.2		60	8.1	3465	1.6	40	39
