High Wind Pressure Ventilator
Model NB-4/5/6 / 850E / 860E
![The highest wind pressure / air volume and boasting excellent durability, [Nishimura of the wind] high performance transmission / exit wind blower NB series.](/uploads/allimg/170411/2246253631-0.png)
- The dedicated fan of the unique design generates the highest wind pressure and air volume in the same capacity blower.
- There is no worry about complicated maintenance due to our unique unique fully closed sector fan motor and sealed bearing.
- Sophisticated design combines the graceful appearance and merit of consistent work, boasting a robust structure.
Main applications
Blast
Pneumatic conveying of general combustion equipment such as heavy oil burner · synthetic chemistry · ice making · milling · glass industry.
exhaust
Separation of gas in the cleaning machine · chemical · food factory · or removal of harmful gas.
Dust collection
Collection of dust / fine powder particles in polishing · cement · milling · tea · lumber · spinning factory.
Catalog download
High Wind Pressure Ventilator
Specification (3 phases 200 V)
※ Nikanshimashite Dimensions and CAD data, this page please visit.
| Form |
Diameter (mm) |
Output (kW) |
Power supply voltage (V) |
Frequency (Hz) |
Current (A) |
Rotation speed (min -1 ) |
Maximum wind pressure (kPa) |
Maximum air flow rate (m 3 / min) |
Mass Quantity (kg) |
|---|---|---|---|---|---|---|---|---|---|
| NB-4 | Φ 63 | 0.21 | 3φ 200 | 50 | 1.1 | 2890 | 1.45 | 4.8 | 14 |
| 60 | 1.0 | 3460 | 2.1 | ||||||
| NB-5 | Φ 75 | 0.3 | 50 | 1.5 | 2850 | 1.9 | 6 | 15 | |
| 60 | 1.4 | 3400 | 2.7 | ||||||
| NB-6 | 0.4 | 50 | 2.0 | 2820 | 2.8 | 7 | 17 | ||
| 60 | 1.8 | 3380 | 3.9 | Four | |||||
| NB-850E | 0.75 | 50 | 3.1 | 2850 | 5.5 | Five | 34 | ||
| NB-860E | 60 | 3.0 | 3420 | 28 |

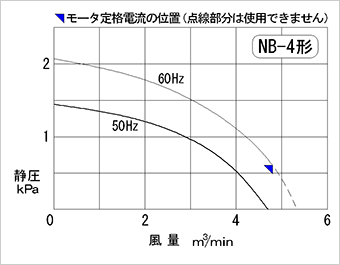

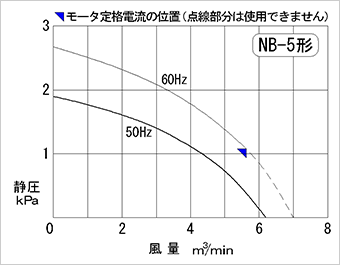

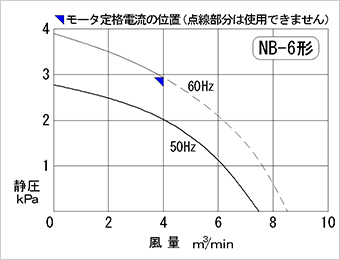

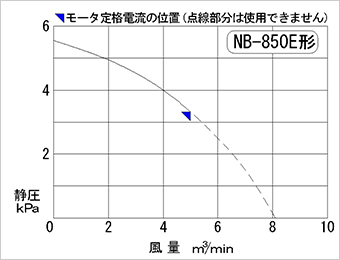

Performance curve
