General purpose transmission / discharge wind aircraft
Model NK-5 / 8E / 200E / 300E / 500E / 750E / 1000E / 1500E
- Direct connection between the most advanced dedicated motor and special fans boasting high efficiency generates a strong wind force from smooth rotation.
- By adopting a fully closed fan motor and a sealed bearing, there is no worry about complicated maintenance.
- Excellent design has a smart appearance and a robust structure.
Main applications
- Recovery of tobacco powder (during tipping operation)
- Pneumatic pumping (plastic synthesis)
- Plastic molding machine
- Remove moisture (breadmaking work)
- Recovery of gold powder iridium powder (pen tip polishing work)
- Drying of film
- Iron powder Dust collection (Bearing polishing work)
- Air blow of high pressure air (for oil burner)
Catalog download
General purpose transmission / discharge wind aircraft
Specification (3 phases 200 V)
※ Nikanshimashite Dimensions and CAD data, this page please visit.
| Form |
Diameter (mm) |
Output (kW) |
Power supply voltage (V) |
Frequency (Hz) |
Current (A) |
Rotation speed (min -1 ) |
Maximum wind pressure (kPa) |
Maximum air flow rate (m 3 / min) |
Mass Quantity (kg) |
|---|---|---|---|---|---|---|---|---|---|
| NK-5 | Φ 120 | 0.4 | 3φ 200 | 50 | 1.9 | 2900 | 1.3 | 12.0 | 18 |
| 60 | 1.7 | 3475 | 1.8 | 11.5 | |||||
| NK-8 E | Φ 160 | 0.75 | 50 | 3.1 | 2850 | 2.2 | 20 | 26 | |
| 60 | 3.0 | 3420 | |||||||
| NK-200 E | Φ 120 | 1.5 | 50 | 5.6 | 2865 | 2.6 | 30 | 46 | |
| 60 | 3435 | ||||||||
| NK-300 E | Φ 142 | 2.2 | 50 | 8.3 | 2890 | 3.0 | 46 | 56 | |
| 60 | 8.1 | 3465 | 42 | ||||||
| NK-500 E | Φ 170 | 3.7 | 50 | 13.0 | 2930 | 4.5 | 45 | 84 | |
| 60 | 3510 | ||||||||
| NK - 750 E | Φ 195 | 5.5 | 50 | 20.0 | 2935 | 5.3 | 60 | 116 | |
| 60 | 19.5 | 3525 | 65 | ||||||
| NK-1000 E | 7.5 | 50 | 26.5 | 2940 | 5.8 | 70 | 128 | ||
| 60 | 3525 | ||||||||
| NK-1500 E | 11 | 50 | 38 | 2950 | 8.2 | 60 | 215 | ||
| 60 | 3540 | 7.2 | 75 |

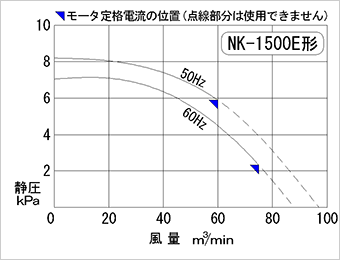

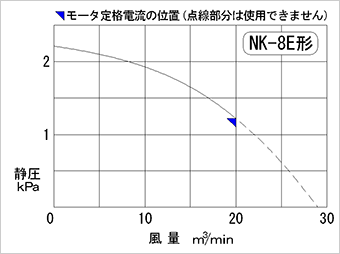

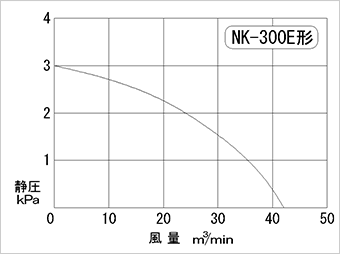

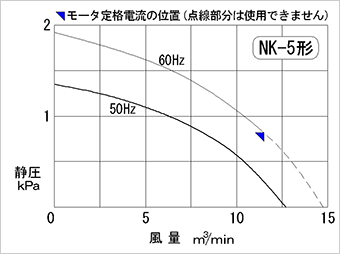

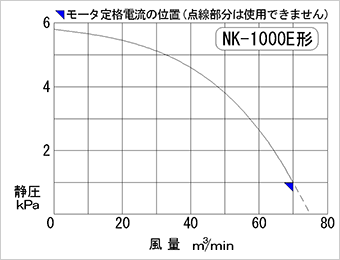

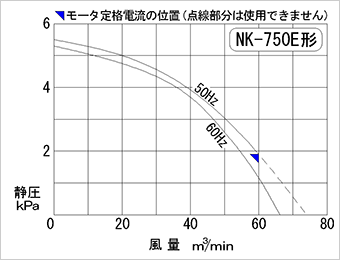

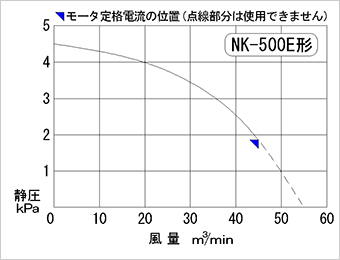

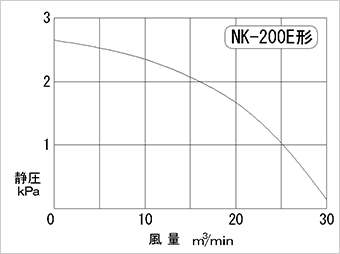

Performance curve
