Large high pressure exhauster
Model TB-100E / 200E / 300E / 500E
- It generates the highest wind pressure and air volume from a compact airframe combining specialized experience and technology.
- The original fully closed fan motor and sealed bearings eliminate the troublesome maintenance work and minimize noise and power consumption.
Main applications
Blast
Pneumatic conveying of gas in burner such as heavy oil burner · synthetic chemistry · ice making · milling · glass industry.
exhaust
Separation of gas in the cleaning machine · chemical · food factory · or removal of harmful gas.
Dust collection
Recovery of dusts, strips etc in polishing, cement, lumber spinning printing factories and others.
Catalog download
Large high pressure exhauster
Specification (3 phases 200 V)
※ Nikanshimashite Dimensions and CAD data, this page please visit.
| Form |
Diameter (mm) |
Output (kW) |
Power supply voltage (V) |
Frequency (Hz) |
Current (A) |
Rotation speed (min -1 ) |
Maximum wind pressure (kPa) |
Maximum air flow rate (m 3 / min) |
Mass Quantity (kg) |
|---|---|---|---|---|---|---|---|---|---|
| TB-100 E | Φ 101 | 0.75 | 3φ 200 | 50 | 3.1 | 2850 | 3.3 | 14.0 | 33 |
| 60 | 3.0 | 3420 | 14.5 | 32 | |||||
| TB-200 E | 1.5 | 50 | 5.6 | 2865 | 5.2 | 14.0 | 52 | ||
| 60 | 5.6 | 3435 | 5.9 | 15.5 | 50 | ||||
| TB-300 E | 2.2 | 50 | 8.3 | 2890 | 7.0 | 14.0 | 62 | ||
| 60 | 8.1 | 3465 | 8.2 | 16.0 | 61 | ||||
| TB-500 E | 3.7 | 50 | 13.0 | 2930 | 14.0 | 14.0 | 112 | ||
| 60 | 13.0 | 3510 | 15.0 | 16.0 | 100 |

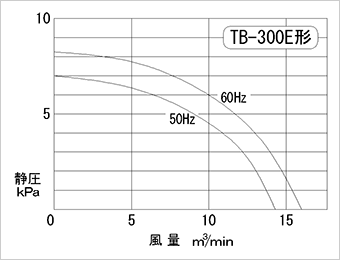

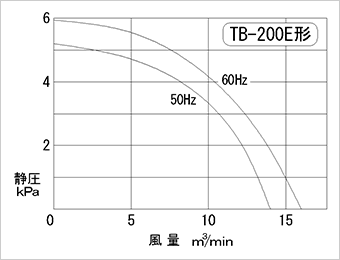

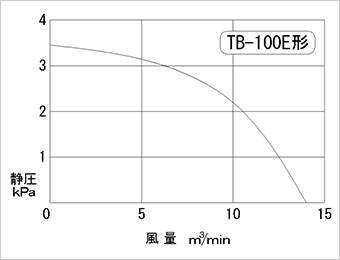

Performance curve
