Shinmaywa Submersible Pump

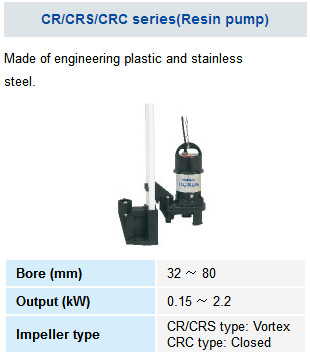

CR/CRS/CRC series(Resin pump)
Made of engineering plastic and stainless steel.
CR/CRS/CRC series(Resinous pump)
Bore (mm) 32 ～ 80
Output (kW) 0.15 ～ 2.2
Impeller type CR/CRS type: Vortex
CRC type: Closed
Non-Clogging Channel Type with Chopper

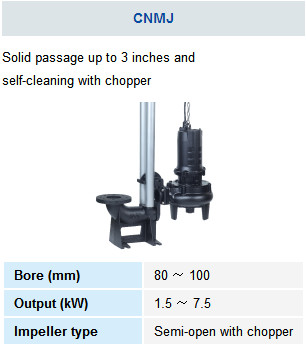

CNMJ
Solid passage up to 3 inches and
self-cleaning with chopper
CR/CRS/CRC series(Resinous pump)
Bore (mm) 80 ～ 100
Output (kW) 1.5 ～ 7.5
Impeller type Semi-open with chopper
Non-clogging channel Type

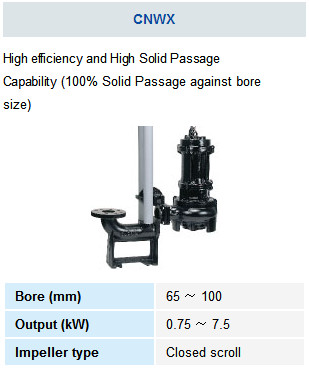

CNWX
High efficiency and High Solid Passage Capability (100% Solid Passage against bore size)
CNWX
Bore (mm) 65 ～ 100
Output (kW) 0.75 ～ 7.5
Impeller type Closed scroll
Recommend

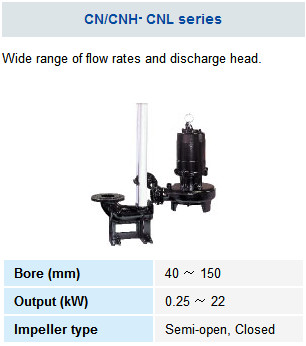

CN/CNH・CNL series
Wide range of flow rates and discharge head.
CN/CNH・CNL series
Bore (mm) 40 ～ 150
Output (kW) 0.25 ～ 22
Impeller type Semi-open, Closed

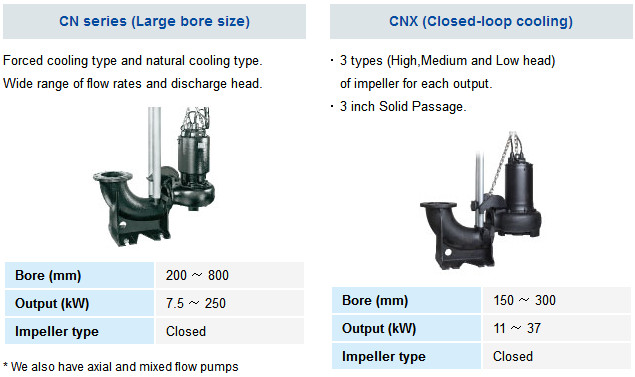

CN series (Large bore size)
Forced cooling type and natural cooling type.
Wide range of flow rates and discharge head.
CN series (Large bore size)
Bore (mm) 200 ～ 800
Output (kW) 7.5 ～ 250
Impeller type Closed
* We also have axial and mixed flow pumps
supply Record
CNX (Closed-loop cooling)
・ 3 types (High,Medium and Low head)
of impeller for each output.・ 3 inch Solid Passage.
CNX (internal cooling)
Bore (mm) 150 ～ 300
Output (kW) 11 ～ 37
Impeller type Closed

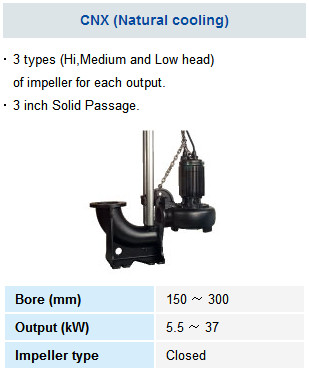

CNX (Natural cooling)
・ 3 types (Hi,Medium and Low head)
of impeller for each output.・ 3 inch Solid Passage.
CNX (natural cooling)
Bore (mm) 150 ～ 300
Output (kW) 5.5 ～ 37
Impeller type Closed
Vortex Type

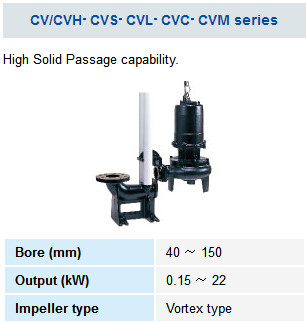

CV/CVH・CVS・CVL・CVC・CVM series
High Solid Passage capability.
CV/CVH・CVS・CVL・CVC・CVM series
Bore (mm) 40 ～ 150
Output (kW) 0.15 ～ 22
Impeller type Vortex type
Chopper,Cutter Type

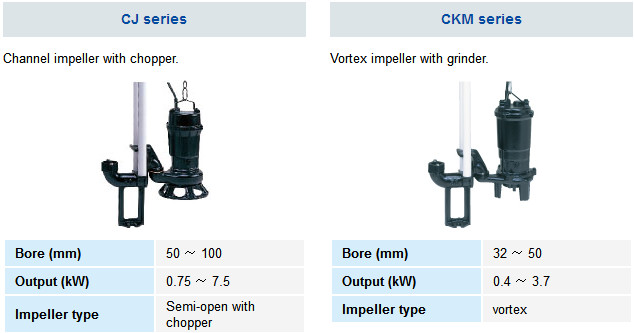

CJ series
Channel impeller with chopper.
CJ series
Bore (mm) 50 ～ 100
Output (kW) 0.75 ～ 7.5
Impeller type Semi-open with chopper
CKM series
Vortex impeller with grinder.
CKM series
Bore (mm) 32 ～ 50
Output (kW) 0.4 ～ 3.7
Impeller type vortex
Stainless steel pump

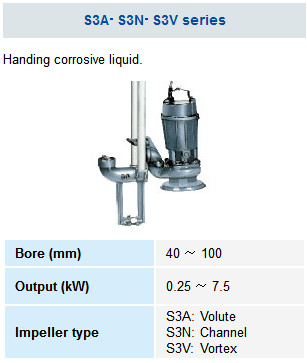

S3A・S3N・S3V series
Handing corrosive liquid.
S3A・S3N・S3V series
Bore (mm) 40 ～ 100
Output (kW) 0.25 ～ 7.5
Impeller type S3A:
Volute
S3N:
Channel
S3V:
Vortex
Volute Type

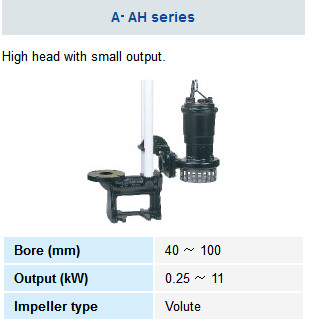

A・AH series
High head with small output.
A・AH series
Bore (mm) 40 ～ 100
Output (kW) 0.25 ～ 11
Impeller type Volute
Flat pump

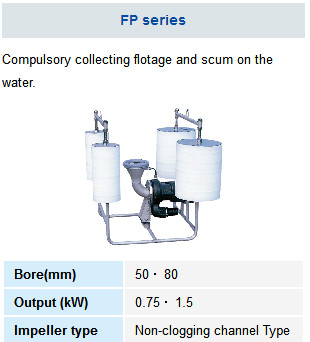

FP series
Compulsory collecting flotage and scum on the water.
FP series
Bore(mm) 50 ・ 80
Output (kW) 0.75 ・ 1.5
Impeller type Non-clogging channel Type
Dry pit Type
CWT・CNT series
Applicable for both dry and wet pit.
CWT・CNT series(Amphibian type)
Discharge
bore (mm) 65 ～ 150
Intake bore (mm) 80 ～ 125
Output (kW) 1.5 ～ 22
Impeller type CWT: Screw
CNT: Channel
Submersible dewatering Pump for Construction Work Purpose
All purpose, construction dewatering pumps is applicable for a wide range of uses, construction site,sewage treatment plant, filtration plant, building, cable pit and household uses.
2 Poles motor Type

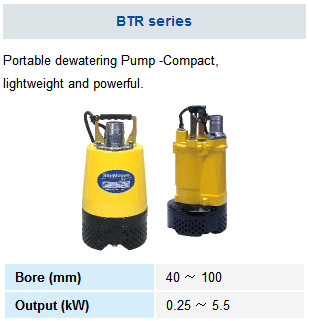

BTR series
Portable dewatering Pump -Compact,
lightweight and powerful.
BTR series
Bore (mm) 40 ～ 100
Output (kW) 0.25 ～ 5.5

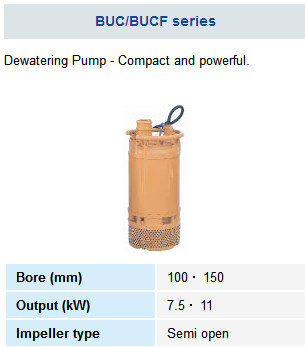

BUC/BUCF series
Dewatering Pump - Compact and powerful.
BUC/BUCF series
Bore (mm) 100 ・ 150
Output (kW) 7.5 ・ 11
Impeller type Semi open

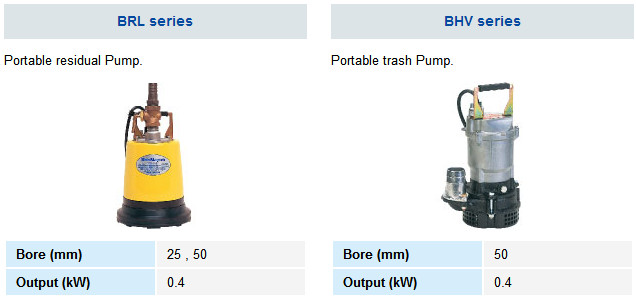

BRL series
Portable residual Pump.
BRL series
Bore (mm) 25 , 50
Output (kW) 0.4
BHV series
Portable trash Pump.
CKM series
Bore (mm) 50
Output (kW) 0.4
4 Poles motor Type

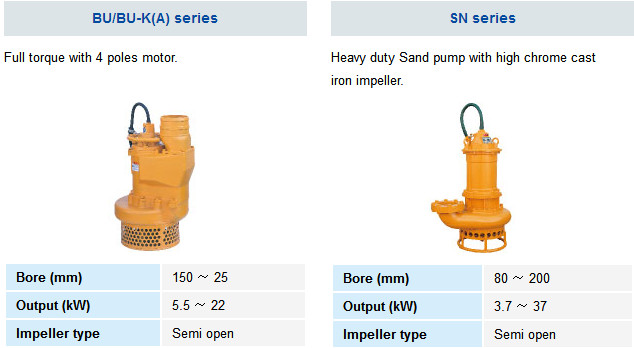

BU/BU-K(A) series
Full torque with 4 poles motor.
BU/BU-K(A) series
Bore (mm) 150 ～ 25
Output (kW) 5.5 ～ 22
Impeller type Semi open
Sand Pump
SN series
Heavy duty Sand pump with high chrome cast iron impeller.
SN series
Bore (mm) 80 ～ 200
Output (kW) 3.7 ～ 37
Impeller type Semi open
Blower（Roots Type)
Spur Rotor Type
ARS series
High efficiency.
ARS series (Spur rotor)
Bore (mm) 50 ～ 250
Output (kW) 1.5 ～ 132
Air flow rate (m3/min) 1.3 ～ 82.0
Discharge pressure (kPa) 10 ～ 80
Helical Rotor Type
ARH-S/SP series
Low noise.
ARH-S/SP series
Bore (mm) 20 ～ 200
Output (kW) 0.4 ～ 55
Air flow rate (m3/min) 0.08 ～ 44.0
Discharge pressure (kPa) 10 ～ 60
Submersible Type
RB series (Helical rotor)
Low noise and machine room is not necessary.
RB series (Helical rotor)
Bore (mm) 25 ～ 125
Output (kW) 0.4 ～ 15
Air flow rate (m3/min) 0.33 ～ 11.8
Discharge pressure (kPa) 10 ～ 60
Submersible Mixer
SM series
Available in wide variations
SM series(Submersible mixer)
Output (kW) 0.25 ～ 15
Thrust (N) 44 ～ 3,700
SM-S series
High wear resistance by high-silicone
stainless steel impeller
SM-S series
Output (kW) 0.9 ～ 7.5
Thrust (N) 130 ～ 1700
SM-R series
Self-aspirating aeration mixer.
SM-R series
Output (kW) 1.5 ～ 2.8
Thrust (N) -
SML series
Low speed mixer for OD(oxidation ditch) tank.
SML series
Output (kW) 1.5 ～ 3.7
Thrust (N) 700 ～ 3,200
Aeration and Mixing
Performs aeration and mixing of a tank by dissolving oxygen into the water with fine bubbles. ShinMaywa has both forced air-supply type and self-aspirating type submersible aerators.
Submersible Aerator
SJ series
Downward discharge and multipoles motor direct drive..
SJ series
Output (kW) 0.75 ～ 7.5
Operation Model Installation
Aeration
and
Mixing SJ-P Guide rail installation
SJ-F Free standing
Mixing only
(No Aeration) SJ-K Free standing
SJL series
Downward discharge and 4-poles motor with reduction gear drive.
SJL series
Output (kW) 2.2 ～ 30
Operation Model Installation
Aeration
and
Mixing SJL-P Guide rail installation
SJL-F Free standing
Mixing only
(No Aeration) SJL-K Free standing
SU series
Upward discharge and multipoles motor direct drive.
SU series
Output (kW) 1.5 ～ 15
Operation Model Installation
Aeration
and
Mixing SU-P Guide rail installation
SU-F Free -standing
Submersible Aerator (Self-aspirating Type)
JSA series
Easy installation and operation.
JSA series(Self-priming Aerator)
Output (kW) 2.2 ・ 3.7
Submersible Ejector
J・JF・JA・JAF series
Suctioned air is ejected with water jet flow into a tank to perform aeration and mixing.
J・JF・JA・JAF series
Output (kW) 0.75 ～ 5.5
Installation type Guide rail installation /
Free standing
Screen
BS / VS / SB / S series
BS : Automatic bar screen
VS : Automatic bar screen(
Coarse spacing, bet moving type) S/SB : Wedge wire screen.
BS / VS / SB / S series(screen)
Pump-Related Products
Liquid Level Control Equipment
LC / FV / MS series
LC / FV / MS series(Liquid level regulator)
.
