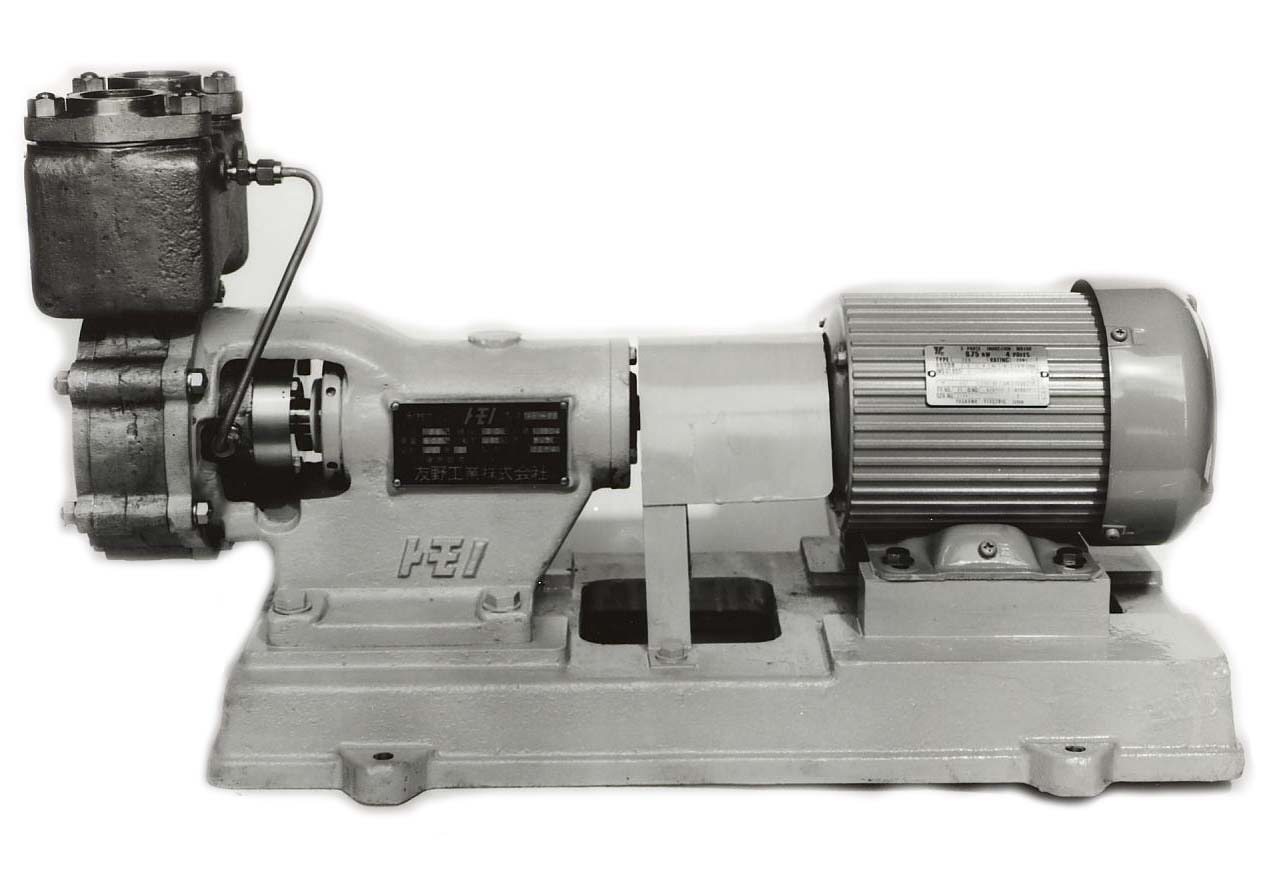

TW standard cascade pump
A cascade pump, which is one type of centrifugal pump, has a narrow
Grooved disk rotates in the casing and it is intense to liquid
While causing the vortex flow and circulating around the inner circumference of the casing, pressure
It increases the force and ejects. During this time as a spiral pump
The action is repeated several times. As a multi-stage pump
It acts. Therefore, a spiral with the same blade outer diameter
A much higher pressure than the pump can be obtained. Kas
Because of this mechanism, the Kade pump lowers low viscous liquid
It is suitable for transporting in raised amount and high lift degree.
|
Cascade pump The Tomono cascade pump consists of various chemical liquids, chemicals, solvents, acids, alkalis It is manufactured for the purpose of transporting low viscosity liquids and various beverages. TW type Particularly, it is an overhang type in which bearings are provided outside the pump chamber so that the transport fluid and the bearing And are completely isolated. Depending on the type of transport solution, impeller, It is also possible to select suitable materials for sing, shaft, etc. Especially on the side If you remove the cover and impeller, you can easily clean the interior. |
