tomono relief valve
Home > Fluid Machinery > Pump > Tomono Pump >
It is recommended to use it for protecting the equipment and adjusting the pressure inside the piping.

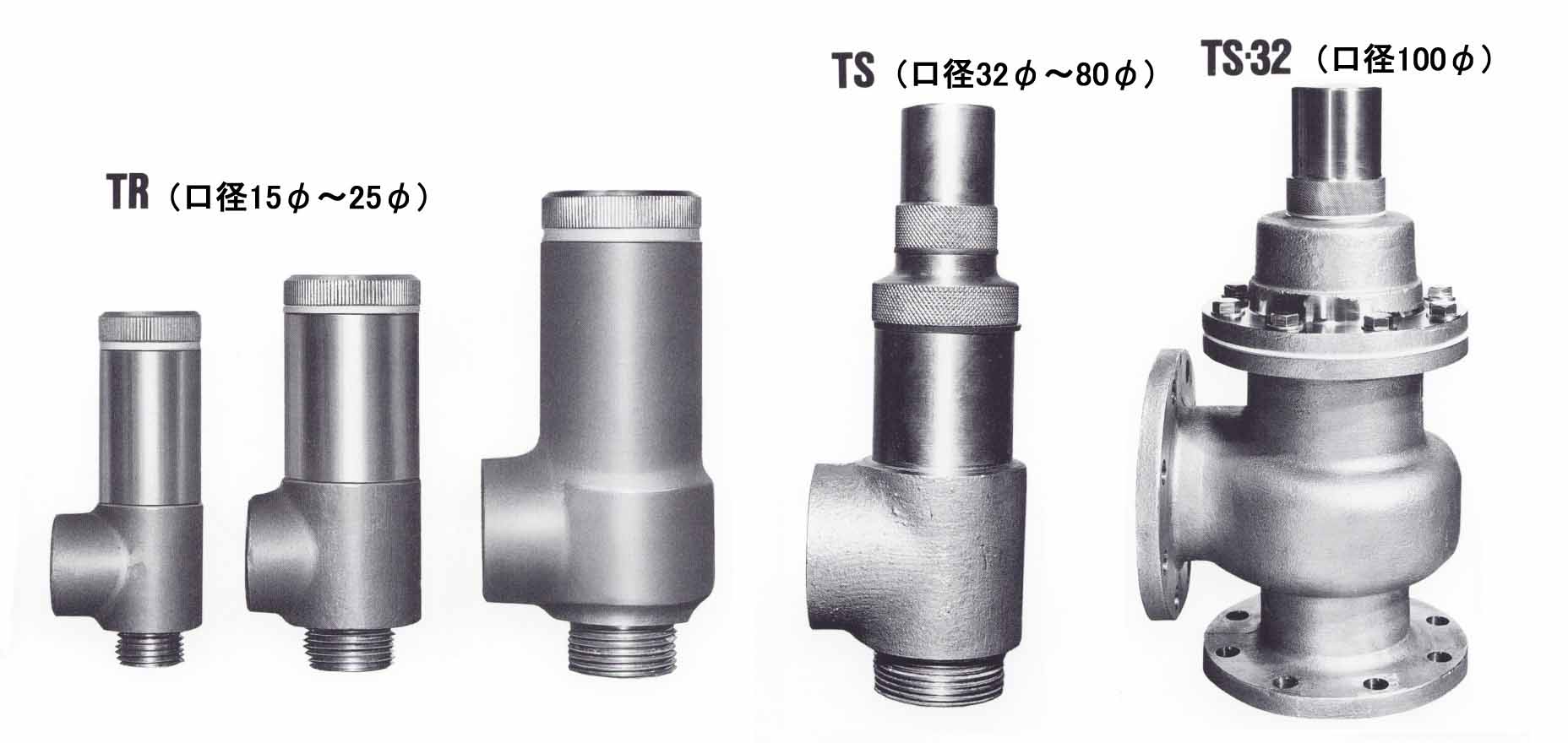

· TR series (15 φ to 25 φ)
· TS series (32φ ~ 100φ)
· · · · TS also has a flange type. (TS-32 is only flange type) ·····
The Tomono relief valve is used for abnormal pressure on the equipment in the liquid piping route
It is a relief valve to protect from the rise, the material of the wetted part is SUS 304 /
It consists of SCS 13 or SUS 316 / SCS 14 and PTFE.
The structure presses the valve body against the valve seat with a spring, and the primary side pressure is set
At or below the pressure, the spring presses the valve body against the valve seat, and at set pressure
Spring stress and liquid pressure are balanced and above the set pressure
The structure is gradually opened. Spring which is still used
It is selected within the elastic limit that can withstand repeated opening and closing.
.
