Sanso Line pump PBZ
20 PBUZ - 331 A · B 25 PBZ - 1031 A · B 25 PBZ - 1031 A · B 25 PBZ - 1033 A · B PBZ - 2021 A · B PBZ - 2023 A · B PBZ - 4021 A · B PBZ - 4023 A · B 25 PBZ - 4031 A · B 50 PBZ - 7523 A · B - E 3 50 PBZ - 15023 A · B - E 3 65 PBZ - 22023 A · B - E 3
A = For 50 Hz B = 60 Hz
Features
● Light weight and robust because the aluminum case is used for the motor frame
● Since the bearing part is isolated from the outside air, long life
● Cooling unit is newly designed with low noise
please note
* Use of "deteriorated antifreeze" or "antifreeze that extremely increases in viscosity when used at low temperature" may cause poor pump rotation or liquid leakage.
When using the standard specification in antifreeze circulation, please specify the following form. (Mechanical seal changed item)
| Standard specification | Antifreeze specification |
|---|---|
| 20 PBUZ - 331 A | 20 PBUZ - 331 A - C |
| 25PPBZ-531A | 25PPBZ-531A-C |
| 25PBZ-1031A | 25PBZ-1031A-C |
| 25 PBZ-1033 A | 25PBZ-1033A-C |
※ Please contact us for mechanical change of 60Hz model change.
PBZ Mechanical seal type High withstand pressure
RoHS compliant product
65 PBZ - 15033 A · B - E 3 65 PBZ - 22033 A · B - E 3 65 PBZ - 37013 A · B - E 3
A = For 50 Hz B = 60 Hz
Features
● Structural analysis improves casing strength and realizes high withstand pressure (commonly used pressure 0.70 MPa)
● High reliability is realized with a fully-closed external use motor
Use
● Building water supply, circulation of industrial water, various system circulation

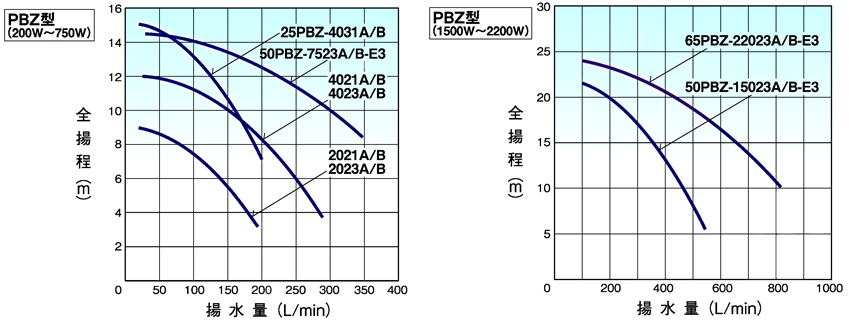

Characteristic

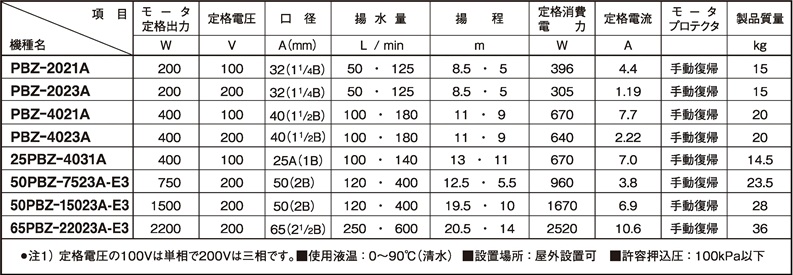

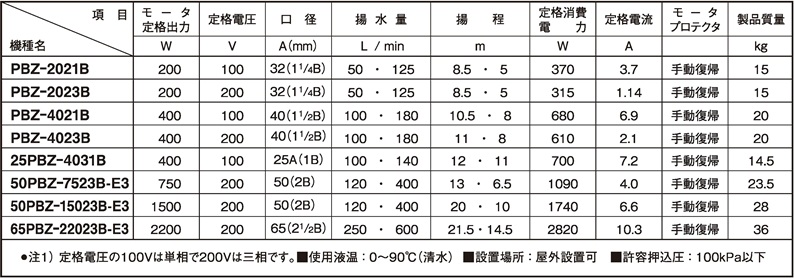

specification
■ 50 Hz
■ 60 Hz

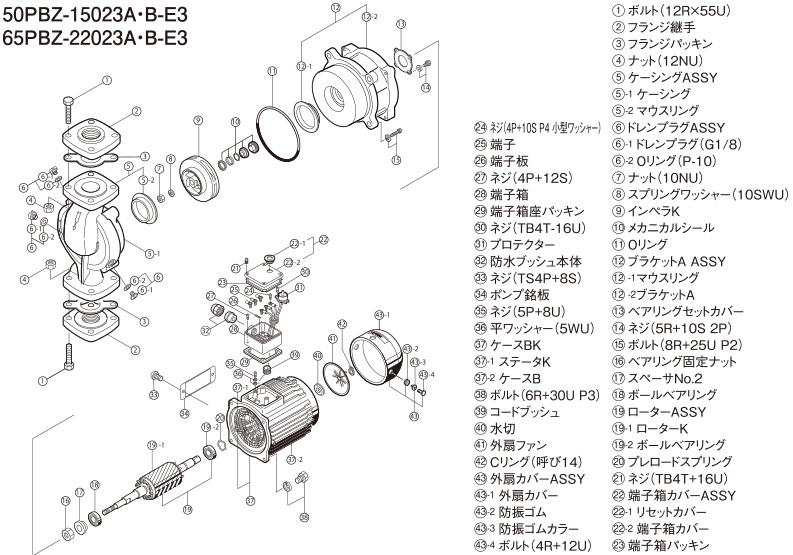

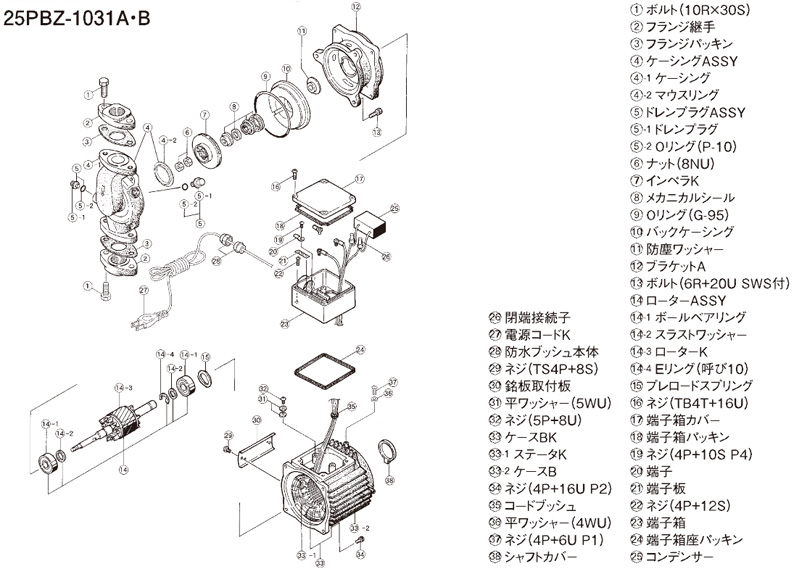

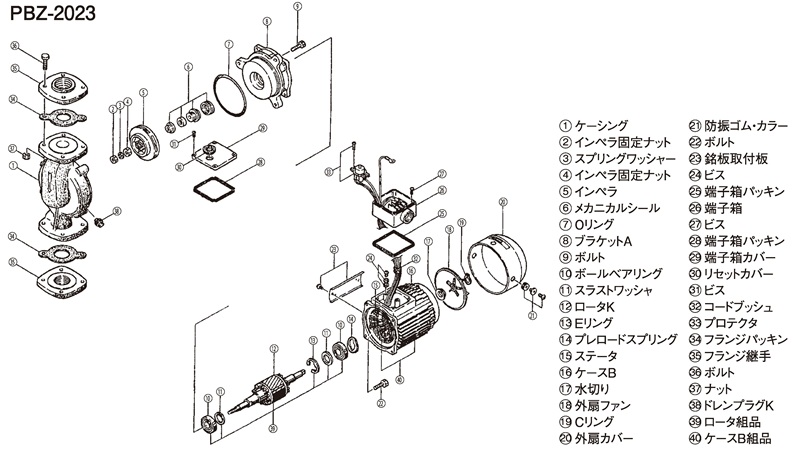

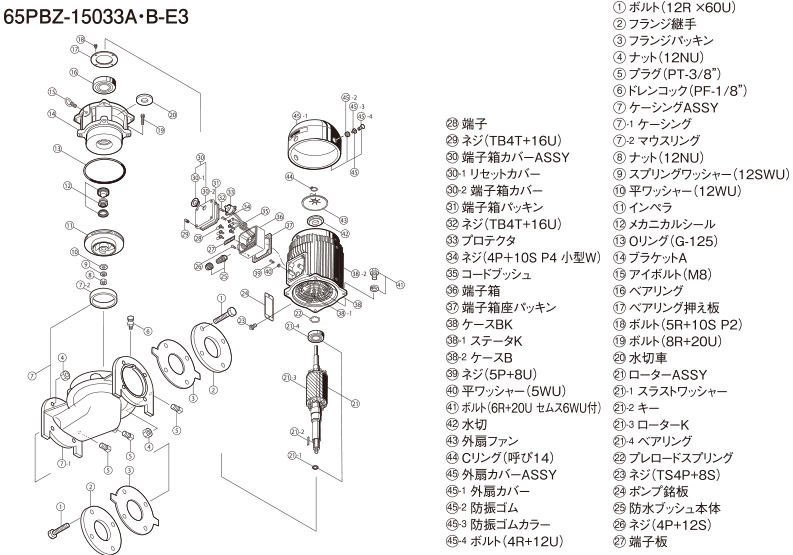

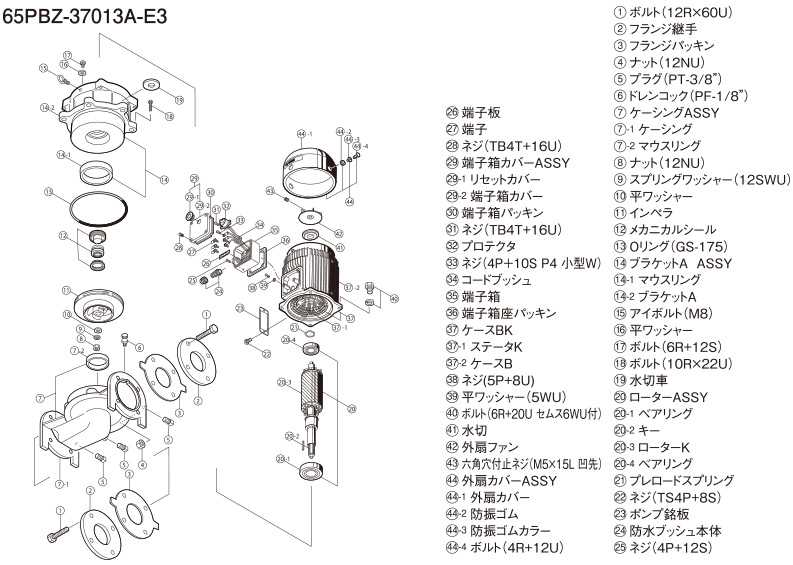

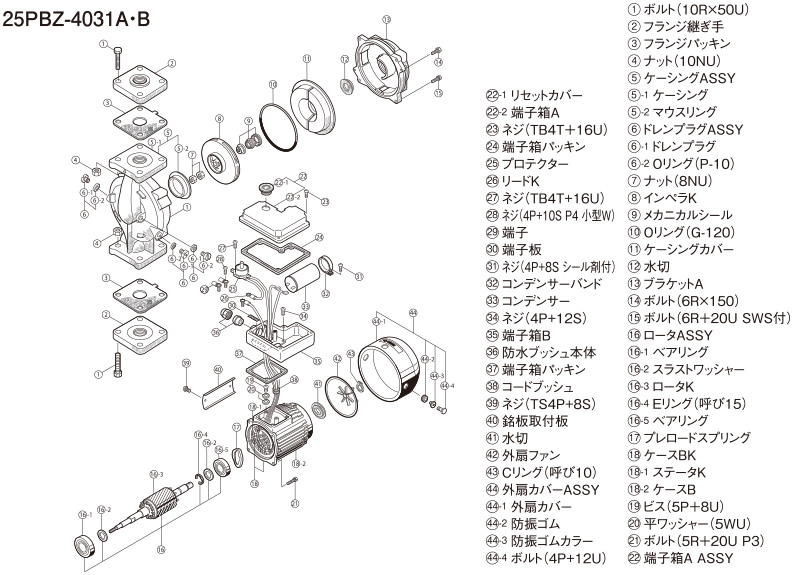

Exploded view

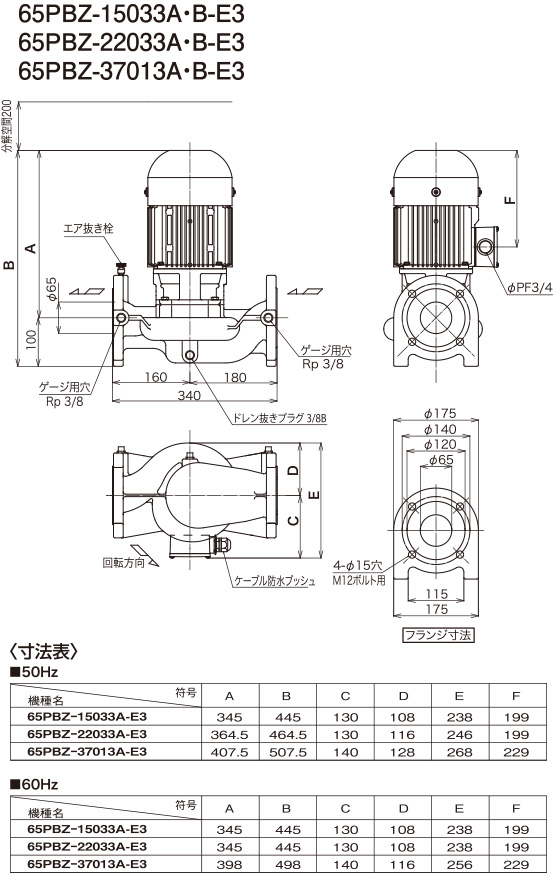

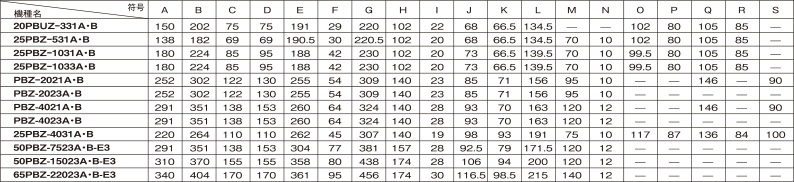

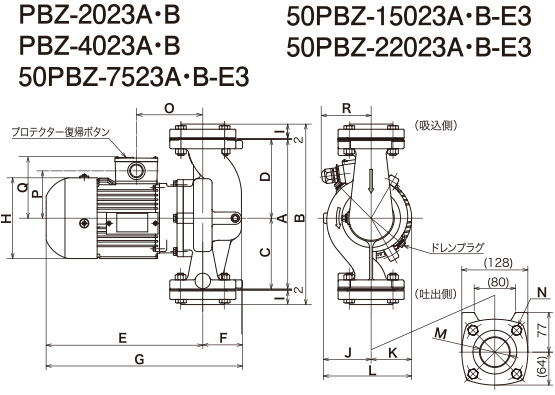

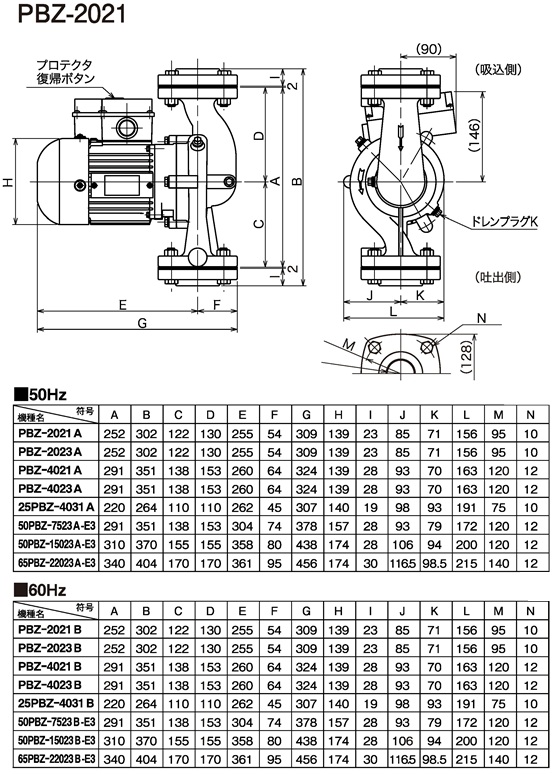

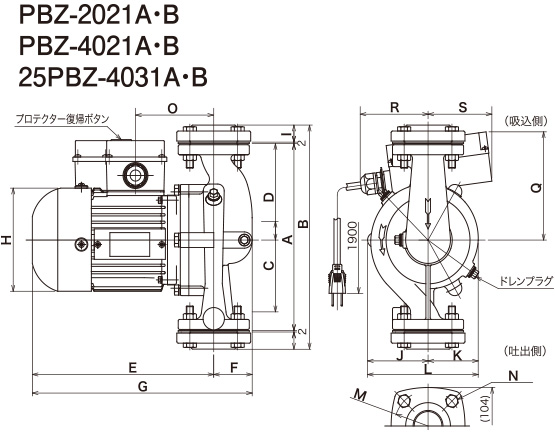

Dimensional drawing
.
