Sanso Line pump PBM
PBM - 521 B PBM - 1021 B PBM - 1521 B PBM - 1511 A PBM - 1511 B
A = For 50 Hz B = 60 Hz
Features
● Magnet coupling structure (seal less)
Exorbance of liquid leakage. Long life.
● Stainless steel casing High pressure resistance (0.75 MPa)
Because it is a magnet pump of stainless steel casing, high pressure resistance 0.75 MPa is realized.
Rugged stainless casing, rust free with high pressure resistance due to the sealless structure, clean.
Use
● hot water circulation (hot water supply system such as hot water supply system)
● Antifreeze circulation (air conditioning and heating circuits such as floor heating)
Wetted part material
| Casing | SCS 13 |
| Back casing | SCS 13 |
| Flange | SCS 13 |
| Impeller | Modified PPO glass 30% |
| Pump shaft | Alumina ceramic |
| Bearing washer | Alumina ceramic |
| bearing | carbon |
| O ring | EPDM |
| magnet | Ferrite |
please note
* Use of "deteriorated antifreeze" or "antifreeze that extremely increases in viscosity when used at low temperature" may cause poor pump rotation or liquid leakage.

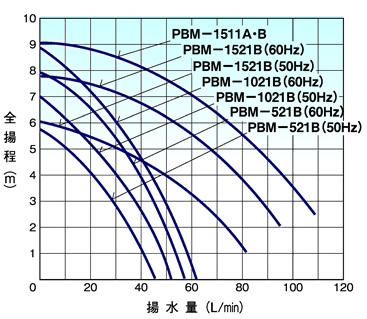

Characteristic

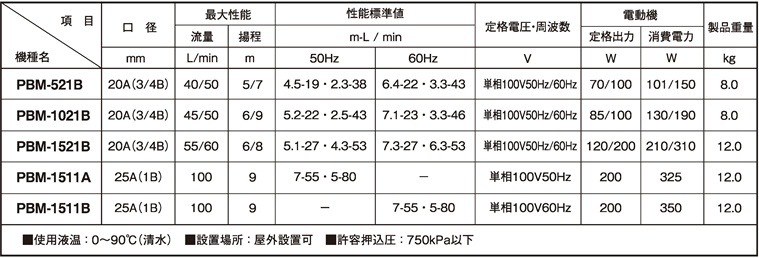

specification

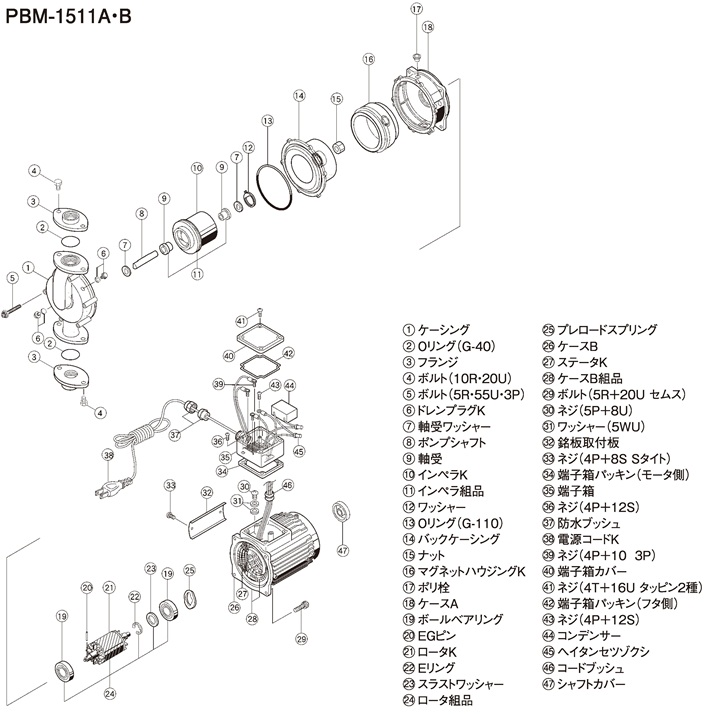

Exploded view

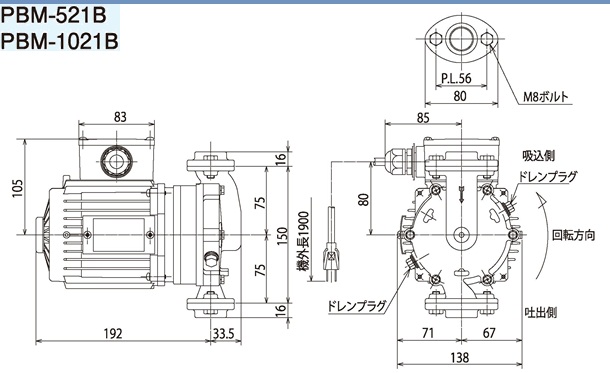

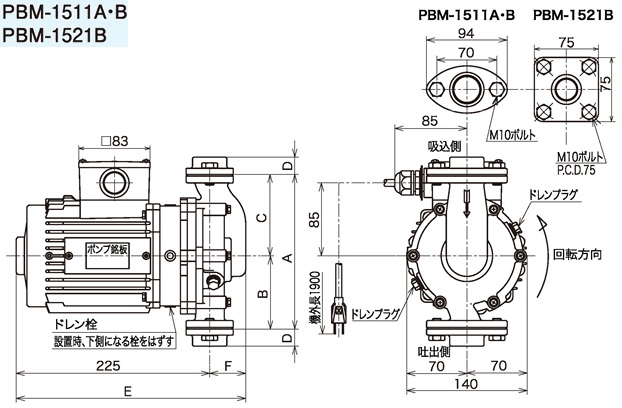

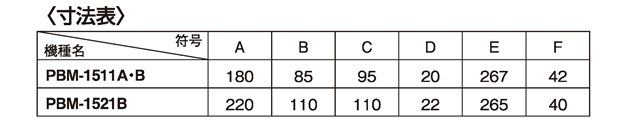

Dimensional drawing
.
