Sanso Magnet pump PMD Small size

Home > Fluid Machinery > Pump > Sanso Pump > Magnet Pump >

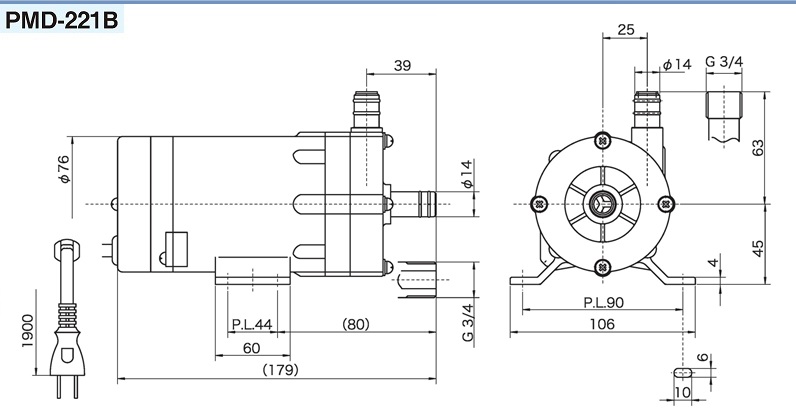

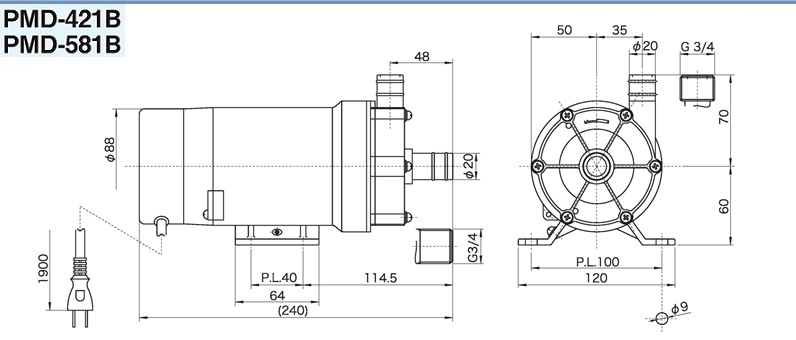

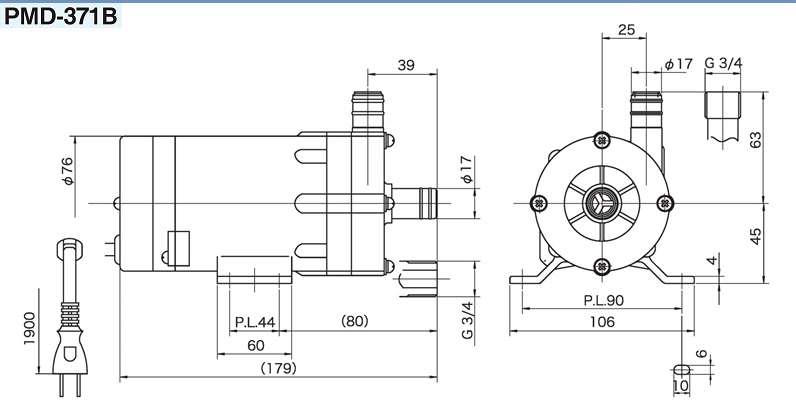

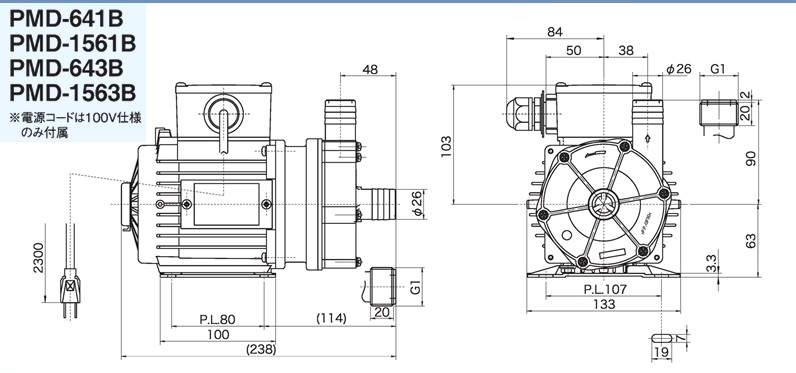

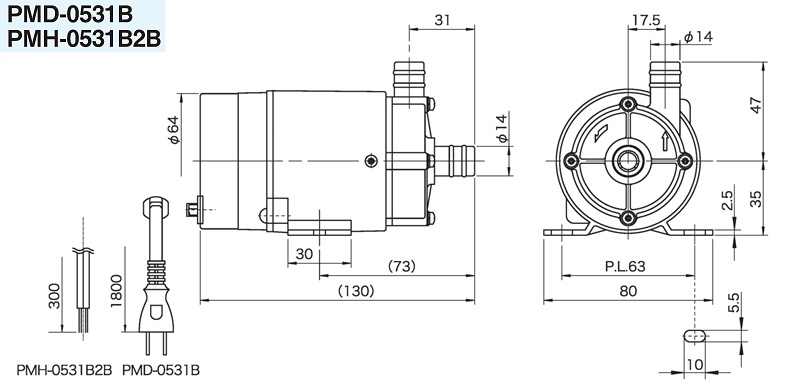

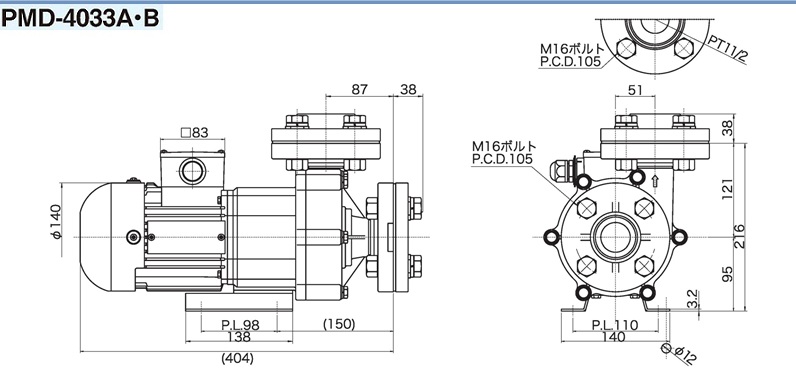

PMD-0531B2B2　PMD-221B2B(M)　PMD-371B2C(M)　PMD-421B2E(M)　PMD-581B2E(M)　PMD-641B2F(P)　PMD-641B2V　PMD-643B2F(P)　PMD-643B2V　PMD-1561B2F(P)　PMD-1561B2V　PMD-1563B2F(P)　PMD-1563B2V　PMD-2571A2F(P)　PMD-2571A2W　PMD-2571B2F(P)　PMD-2571B2W　PMD-2573A2F(P)　PMD-2573A2W　PMD-2573B2F(P)　PMD-2573B2W　PMD-4033A2X　PMD-4033B2X　PMD-7533A2X-E3　PMD-7533B2X-E3

Features

● High performance and energy saving

Improved pump efficiency by 35% compared with conventional products. It became smaller and lighter, reduced by 5 db by noise and reduced vibration by 50%.

● Long service life No liquid leakage

The magnet pump is a pump without a shaft sealing part. There is no concern of liquid leakage at all, since it is made of resin, it is suitable for transporting highly corrosive special liquids, from small models to large models for industrial processes, it has been active in a wide range of fields with its outstanding performance and abundant models It is.

● Completely expel liquid leakage

It is a sealless pump by a magnet coupling system. There is no liquid leakage and corrosion of the pump part, there is no trouble of dirt around the pump and exchange of the mechanical seal. It is the optimum pump for installation.

● Union for PVC piping as standard equipment

We attached a dedicated union fitting for screw connection type. (13 A, 16 A can be connected to the pump orifice 3/4 B, 20 A can be connected to the pump bore size 1 B. Heat-resistant temperature 0 ° C. to 60 ° C.) Since O-rings with high sealing effect are used, pumps and piping can be detached easily Maintenance can be done easily.

Use

● Cooling water circulation · Seawater circulation · Circulation of chemical liquids (excluding some)

● For various machine sets · Pens and seawater plants

● Hydroponic cultivation · plant factory

Corrosion resistance table

Fluid	Indication
Sodium hypochlorite	Concentration up to 5 ppm
caustic soda	Concentration up to 5%
hydrochloric acid	Up to 30% concentration
Sulfuric acid	Up to 10% concentration
citric acid	Concentration up to 15%

* The above corrosion resistance table is a standard when the fluid temperature is normal temperature (0 to 40 ° C).

please note

※ Chemical Resistance For
chemical resistance, please use it before checking whether it is suitable for the intended use, such as conducting a test in advance.
* When using cold water, if necessary, please use heat insulation material / insulation material and dew condensation countermeasure.

Appearance of caliber (last letter of model name)

	hose				screw				Flange
symbol	B	C	E	F	J	K	M	P	V	W	X	Z
Caliber	14 A (mm)	17 A (mm)	20 A (mm)	26.5 A (mm)	3 / 8B	1 / 2B	3 / 4B	1 B	20 A	25 A	40 A	50 A × 40 A
shape

Appearance of model name

① Magnetic pump
② Motor nominal output (display × 10 W)
③ Series number
④ Number of phase of power supply Voltage 1: Single phase 100 V 3: Three phase 200 V
⑤ Power
frequency A: 50 Hz B: 60 Hz or 50/60 Hz ⑥ Material of water contact part (Note 1)
⑦ caliber C: 17 A hose

(Note 1) Material of the water contact part

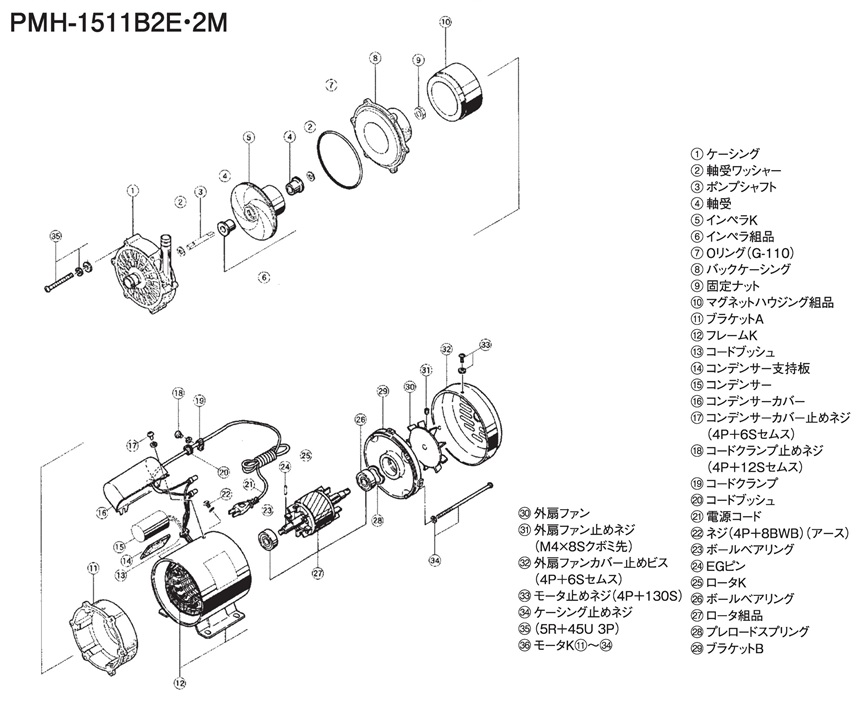

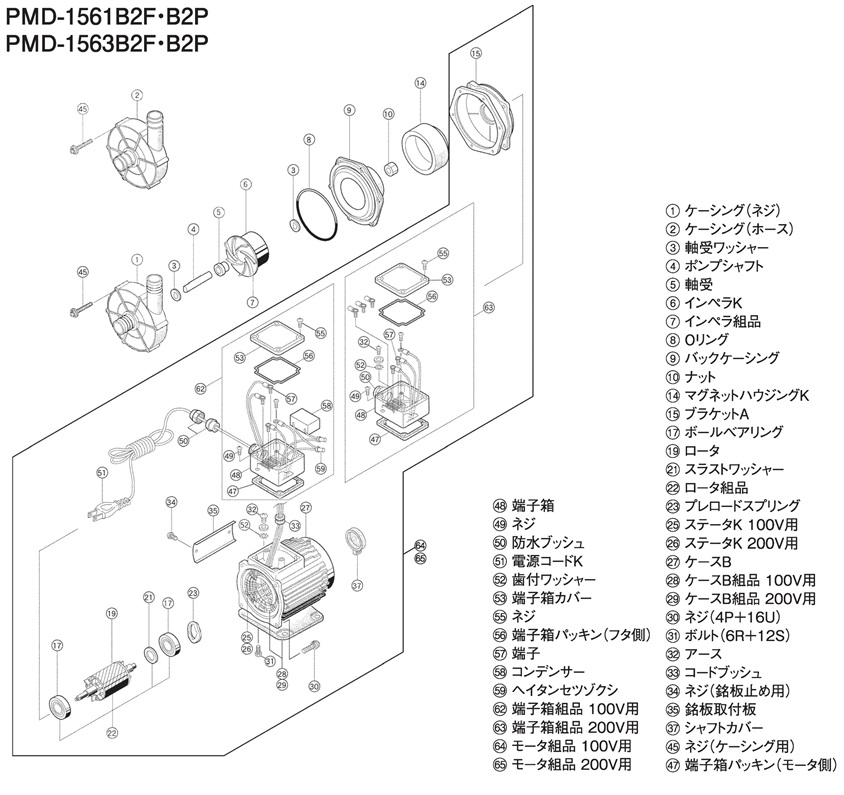

Part name and its material
Component name classification	2
Casing Impeller Pump Shaft Thrust Accept Pump Bearing O Ring	Polypropylene filled with filler Polypropylene filled with filler Ceramic ceramic Teflon fluorine rubber

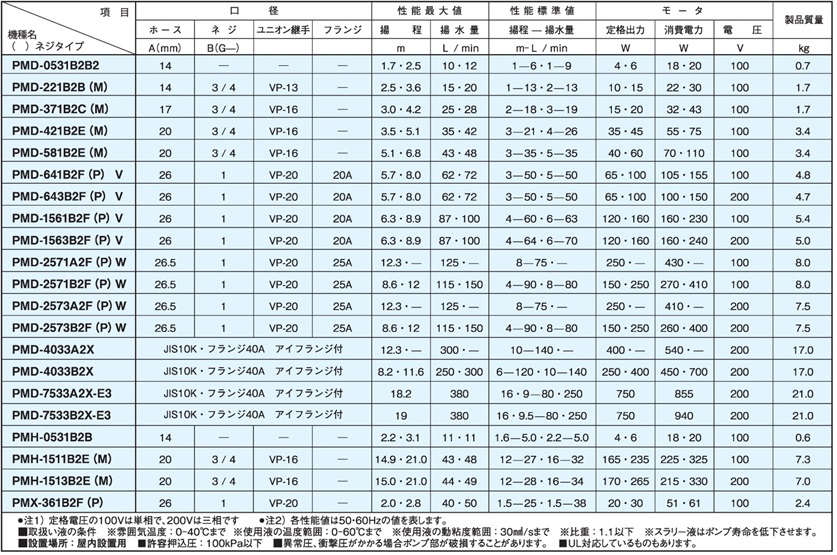

(Note 2) Standard specifications are based on the following specifications

* There are no phase flanges for PMD - 641 B 2 V, PMD - 643 B 2 V, PMD - 1561 B 2 V, PMD - 1563 B 2 V, PMD - 2571 A 2 W, PMD - 2571 B 2 W, PMD - 2573 A 2 W, PMD - 2573 B 2 W. Please arrange the customer JIS 10K flange on the market.
