Sanso Magnet pump PMDS
PMDS-421 B 2 PMDS-641 B 2 PMDS-641 B 2 P PMDS-643 B 2 P PMDS-1561 B 2 P PMDS-1563 B 2 P PMDS-2571 A 2 P PMDS-2573 B 2 P PMDS-2573 A 2 P PMDS-2573 B 2 P
PMHS-1511 B 2 PMHS-1513 B 2 M
Features
● Ultra low noise · Ultra high efficiency
By adopting a novel self-absorption structure, we maintain pump efficiency and noise value that is almost equal to our non-self-priming PMD type magnet pump (before placing our own self-priming tank), realizing super bass and super efficiency.
● Full displacement of liquid leakage
Because of the seal-less structure by the magnet coupling system, there is no liquid leakage and corrosion of the pump, so there is no need for dirt around the pump and exchange of mechanical seal.
● Removable self-priming tank
Adopting a detachable self-priming tank structure. You can select self-suction or non-self-suction depending on the application. Changes to the self-priming pump (PMDS type) and the non-self-priming pump (PMD type) can be easily made, but please consult us when changing.
● Maximum self-suction height due to liquid temperature does not decrease
Maximum self-suction height of pump due to liquid temperature does not decrease due to novel self-absorption structure.
Use
● Seawater circulation · Circulation of chemical liquids (excluding some)
● Cooling circulation · Pond storage · Seawater plant
● Hydroponic cultivation · plant factory
Corrosion resistance table
| Fluid | Indication |
|---|---|
| Sodium hypochlorite | Concentration up to 5 ppm |
| caustic soda | Concentration up to 5% |
| hydrochloric acid | Up to 30% concentration |
| Sulfuric acid | Up to 10% concentration |
| citric acid | Concentration up to 15% |
* The above corrosion resistance table is a standard when the fluid temperature is normal temperature (0 to 40 ° C).
please note
※ About Chemical Resistance <br /> Regarding chemical resistance, please use it beforehand to check whether it is suitable for use, such as conducting tests beforehand.
* When using cold water, if necessary, please use heat insulation material / insulation material and dew condensation countermeasure.

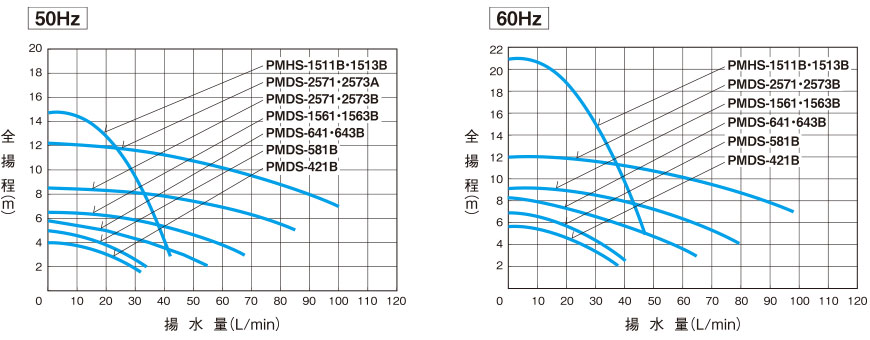

Characteristic

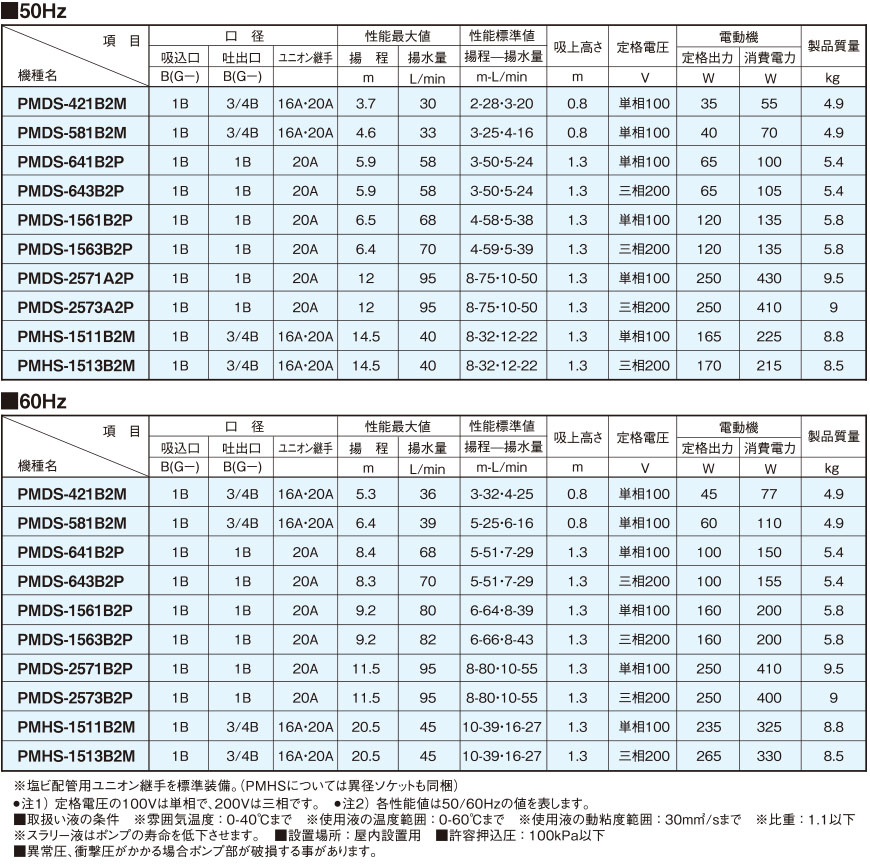

specification

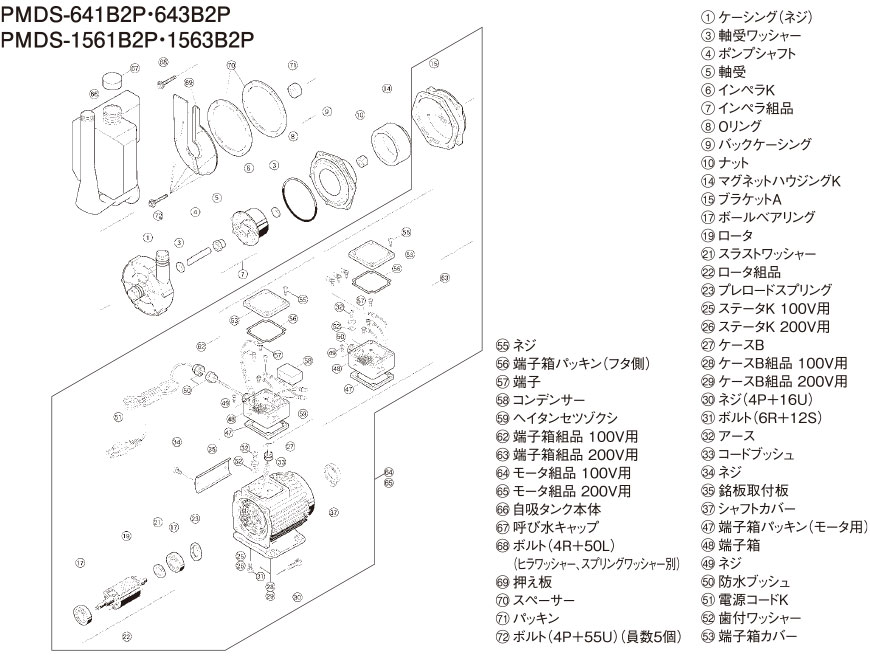

Exploded view

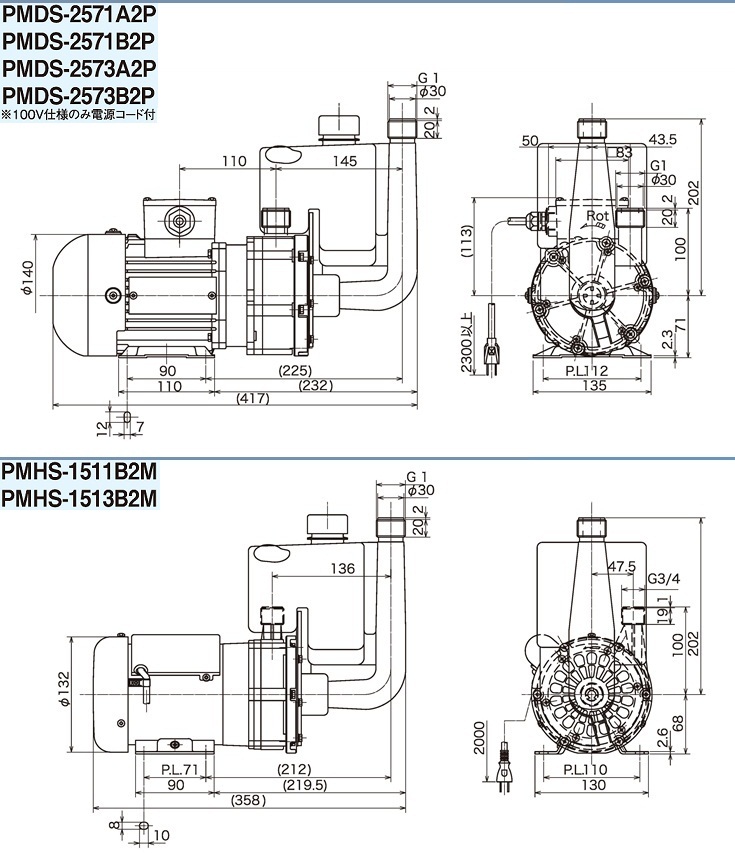

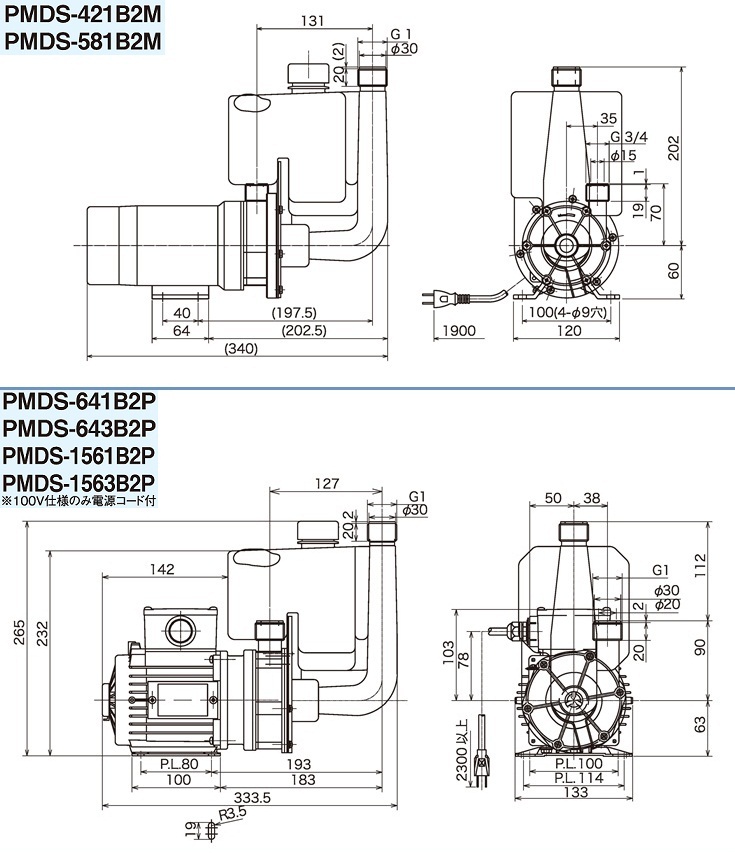

Dimensional drawing
.
