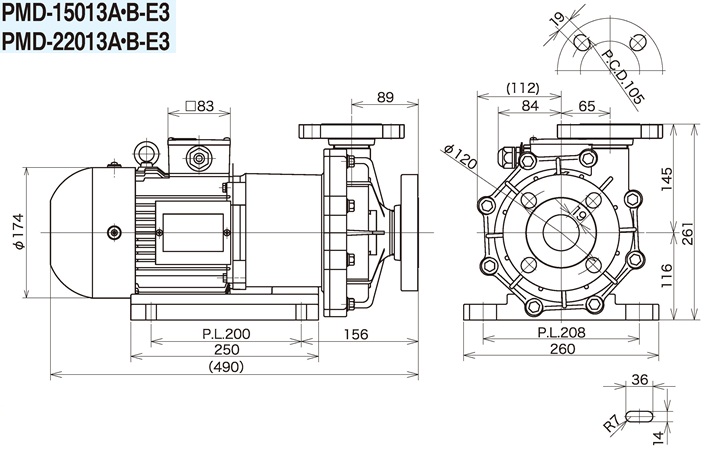

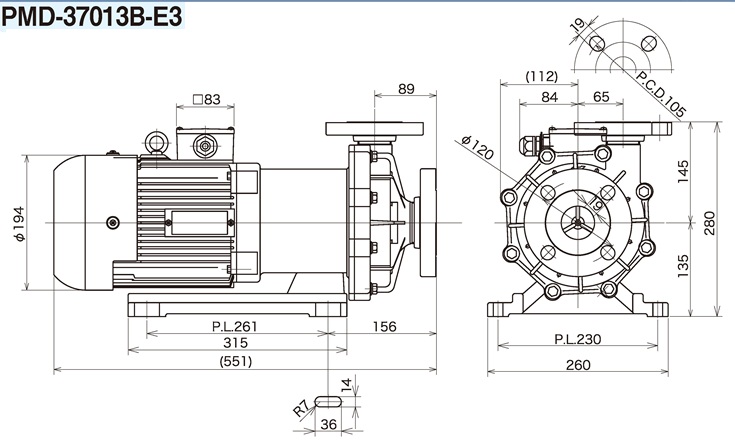

Sanso Magnet pump PMD big size

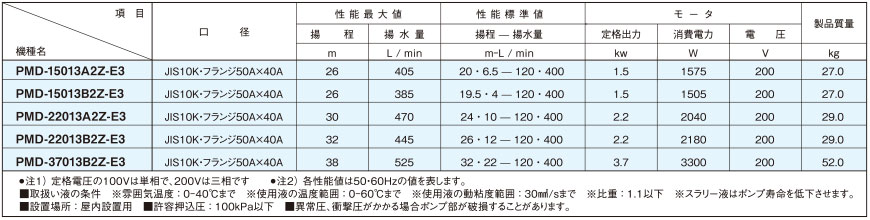

PMD-15013A 2 Z-E 3 PMD-15013 B 2 Z-E 3 PMD-22013 A 2 Z-E 3 PMD-22013 B 2 Z-E 3 PMD-37013 B 2 Z-E 3

A = For 50 Hz B = 60 Hz

Features

● High performance and energy saving

Improved pump efficiency by 35% compared with conventional products. It became smaller and lighter, reduced by 5 db by noise and reduced vibration by 50%.

● Long service life No liquid leakage

The magnet pump is a pump without a shaft sealing part. Since it is made of resin without any worry of liquid leakage, it is suitable for transporting highly corrosive special liquids, from small models to large models for industrial processes, and it is active in a wide range of fields with its excellent performance and abundant models .

● Completely expel liquid leakage

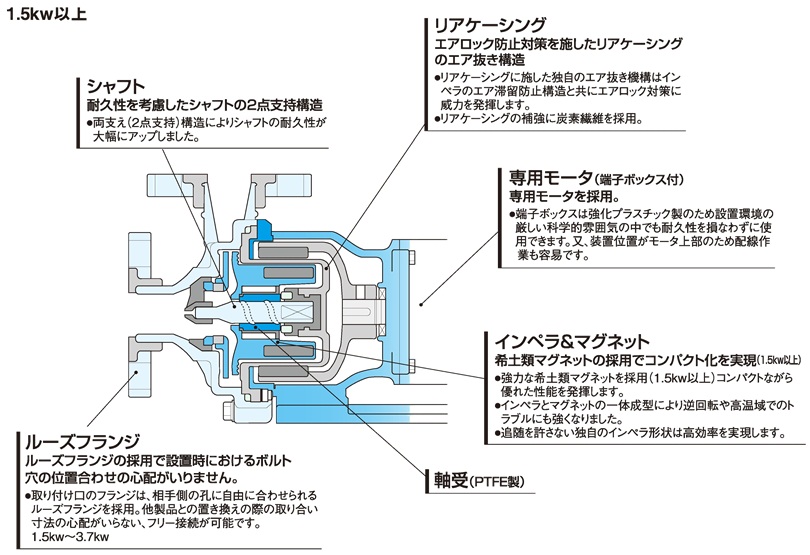

It is a sealless pump by a magnet coupling system. There is no liquid leakage and corrosion of the pump part, there is no trouble of dirt around the pump and exchange of the mechanical seal. It is the optimum pump for installation.

Use

● Cooling water circulation · Seawater circulation · Circulation of chemical liquids (excluding some)

● For various machine sets · Pens and seawater plants

● Hydroponic cultivation · printing equipment · chiller

Corrosion resistance table

Fluid	Indication
Sodium hypochlorite	Concentration up to 5 ppm
caustic soda	Concentration up to 5%
hydrochloric acid	Up to 30% concentration
Sulfuric acid	Up to 10% concentration
citric acid	Concentration up to 15%

* The above corrosion resistance table is a standard when the fluid temperature is normal temperature (0 to 40 ° C).

please note

※ About Chemical Resistance <br /> Regarding chemical resistance, please use it before checking whether it is suitable for the purpose of use, such as conducting a test beforehand.
* When using cold water, if necessary, please use heat insulation material / insulation material and dew condensation countermeasure.
* The phase flange, flange packing, mounting bolt are not included. Please purchase optional flange set (sold separately) or purchase commercially available products (JIS 10K products).

Appearance of caliber (last letter of model name)

	hose				screw				Flange
symbol	B	C	E	F	J	K	M	P	X	Z
Caliber	14 A (mm)	17 A (mm)	20 A (mm)	26.5 A (mm)	3 / 8B	1 / 2B	3 / 4B	1 B	40 A	50 A × 40 A
shape

Appearance of model name

① Magnet pump ② Motor nominal output (display × 10 W)
③ Series number ④ Number of phase of power supply Voltage 1: Single phase 100 V 3: Three phase 200 V
⑤ Power frequency A: 50 Hz B: 60 Hz or 50/60 Hz
⑥ Material of water contact part (Note 1)
⑦ caliber Z: 50 A × 40 A flange

(Note 1) Material of the water contact part

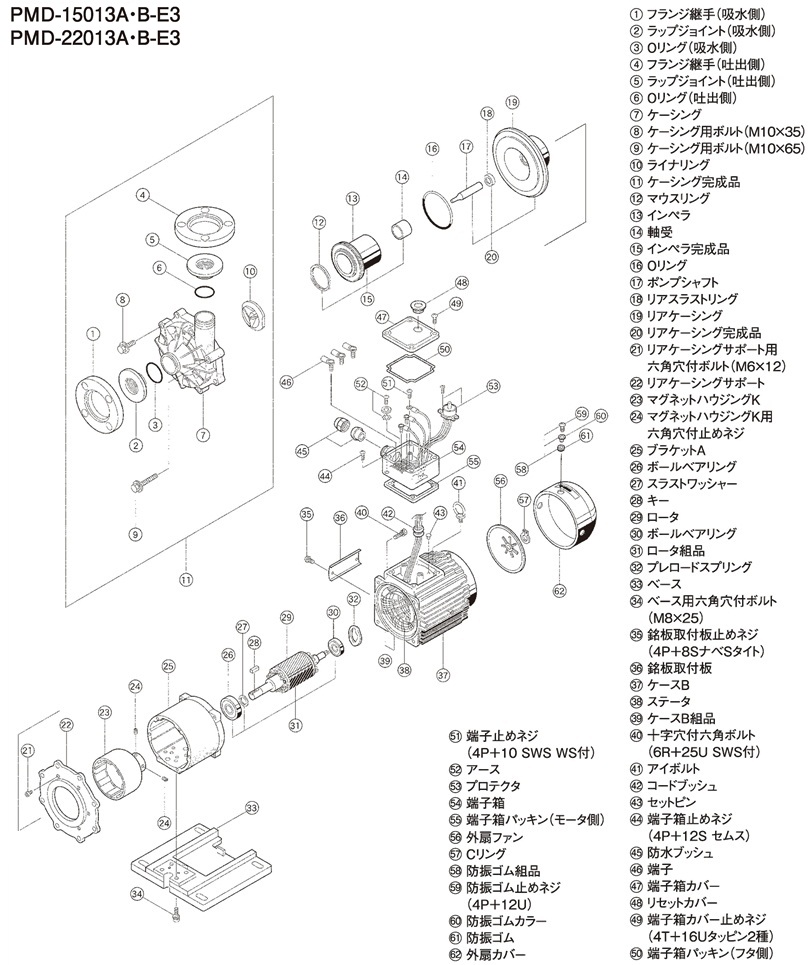

Part name and material
Component name classification	2
Casing Impeller Pump Shaft Thrust Accept Pump Bearing O Ring	Filler filled polypropylene filler filled polypropylene ceramic ceramic teflon fluoro rubber
