Sanso Magnet pump PMD 200V

Home > Fluid Machinery > Pump > Sanso Pump > Magnet Pump >

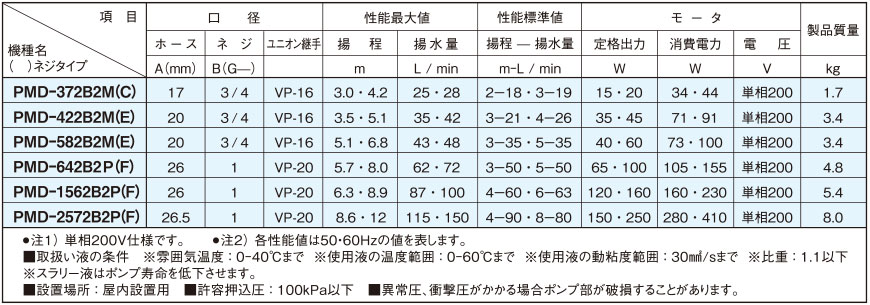

PMD - 252 B 2 M (C) PMD - 422 B 2 M (E) PMD - 582 B 2 M (E) PMD - 642 B 2 P (F) PMD - 1562 B 2 P (F) PMD - 2572 B 2 P (F)

※ The last letter of the model name () is a hose type

Features

● High performance and energy saving

● Long service life No liquid leakage

● Completely expel liquid leakage

● Abundant models

● Fully closed house type motor

● Union for PVC piping as standard equipment

We attached a dedicated union fitting for screw connection type. (13 A, 16 A can be connected to the pump orifice 3/4 B, 20 A can be connected to the pump bore size 1 B. Heat-resistant temperature 0 ° C. to 60 ° C.) Since O-rings with high sealing effect are used, pumps and piping can be detached easily Maintenance can be done easily.

Application (Single phase 200 V specification added)

● Single phase 200V specification

For single-phase 200 V power supply utilization applications

● Cooling circulation · Seawater circulation · Circulation of chemical liquids (excluding some)

● For various machine sets · Pens and seawater plants

● Hydroponic cultivation · plant factory

Corrosion resistance table

Fluid	Indication
Sodium hypochlorite	Concentration up to 5 ppm
caustic soda	Concentration up to 5%
hydrochloric acid	Up to 30% concentration
Sulfuric acid	Up to 10% concentration
citric acid	Concentration up to 15%

* The above corrosion resistance table is a standard when the fluid temperature is normal temperature (0 to 40 ° C).

please note

※ About Chemical Resistance <br /> Regarding chemical resistance, please use it before checking whether it is suitable for the purpose of use, such as conducting a test beforehand.
* When using cold water, if necessary, please use heat insulation material / insulation material and dew condensation countermeasure.
