25 PSPZ - 2031 A · B 25 PSPZ - 2033 A · B 40 PSPZ - 4031 A · B 40 PSPZ - 4033 A · B 40 PSPZ - 7533 A · B - E 3

A = For 50 Hz B = 60 Hz

Features

● Ultra low noise

By improving the structure inside the pump, ultra-low noise of up to 15 db (A) lower than our conventional product is realized in all new series.
※ When you reduce 10 db (A), the actual audible sound (SONE) is halved.

● High efficiency

By integrally optimizing design of the motor and pump, we realized high efficiency of up to 47% improvement in pump efficiency than our previous product, and reduced power consumption by up to 56%.

● Long service life · High reliability

The material with excellent corrosion resistance is used for the wetted part, the improvement of the shaft seal part improves the reliability of the mechanical seal, and the reliability against water leakage in the unlikely event has improved sharply.

● High maintenance

Improved maintainability because it has a structure that makes it easy to fix the shaft when detaching the impeller for mechanical seal replacement. All models are fully closed outside fan-out type motors. In addition, waterproof bush is equipped as standard equipment at the cable outlet of the terminal box, enabling installation in a humid environment and dusty places.

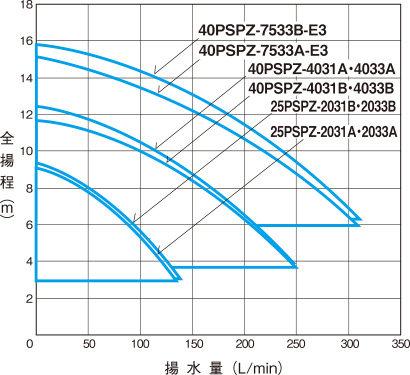

Characteristic

specification

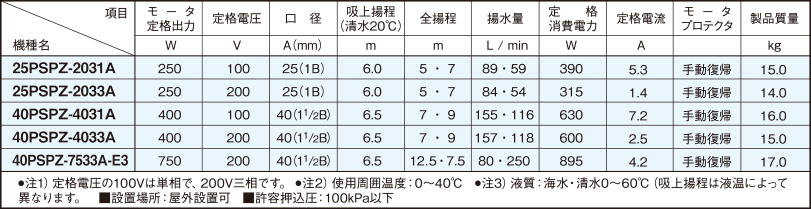

■ 50 Hz

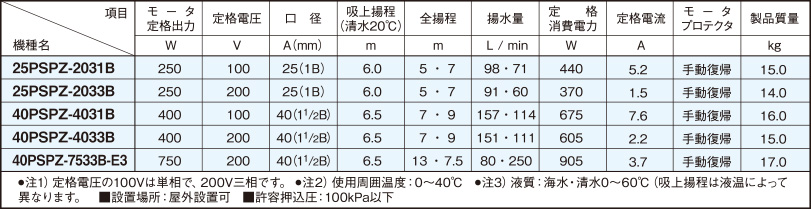

■ 60 Hz

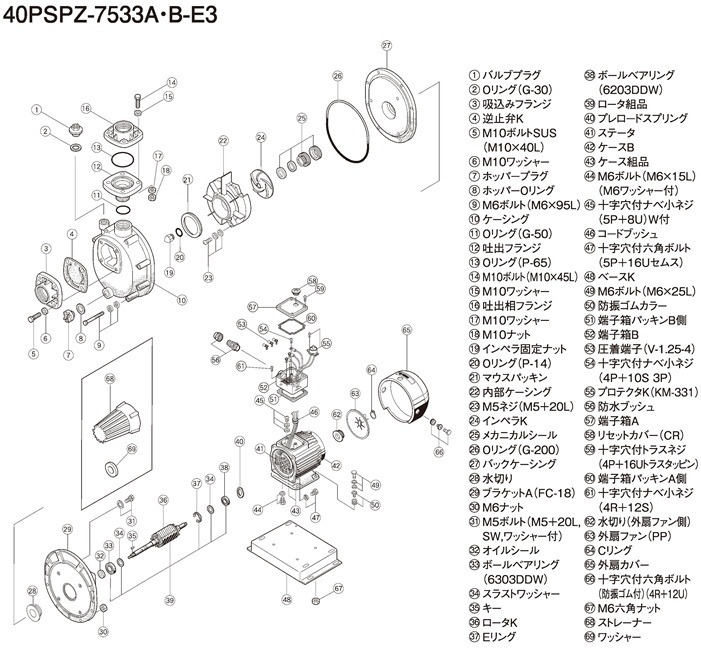

Exploded view

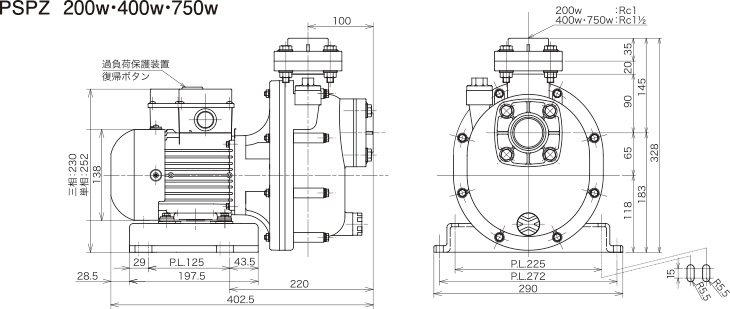

Dimensional drawing
