Sanso Circulation pump PSPZ large size

Home > Fluid Machinery > Pump > Sanso Pump > Circulation pump >

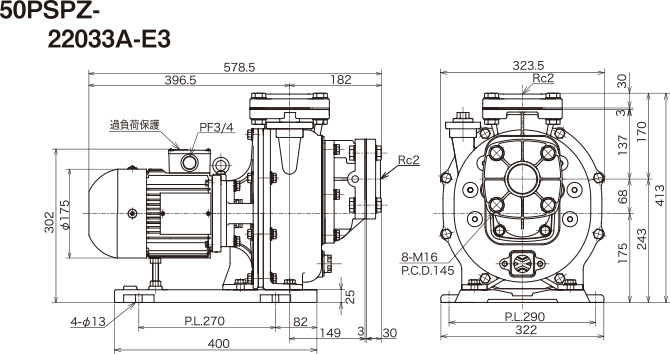

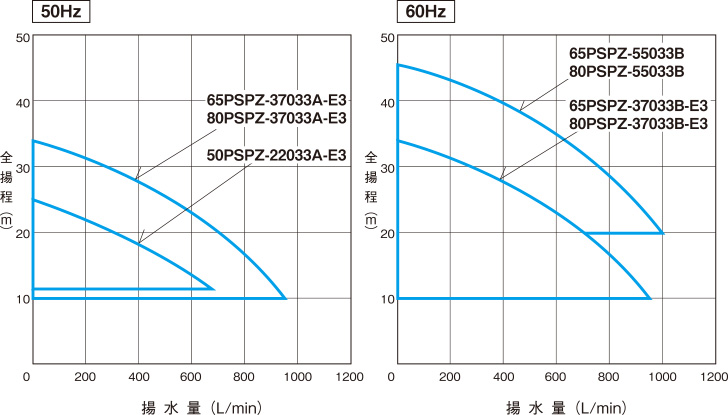

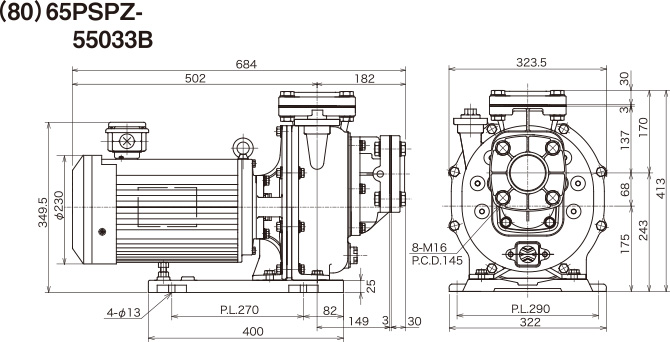

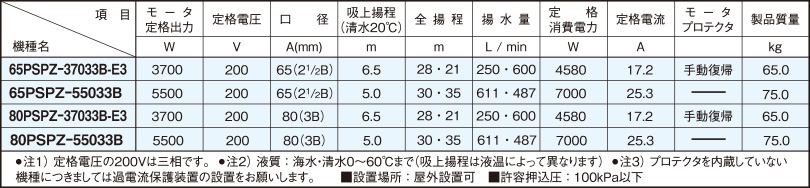

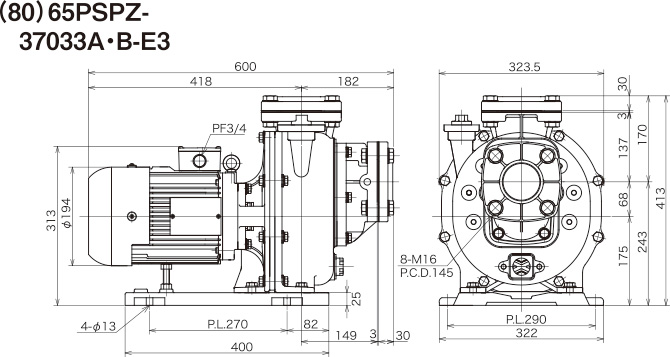

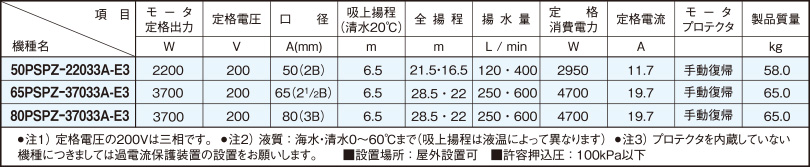

50 PSPZ-22033 A-E 3 65 PSPZ-37033 A · B 80 PSPZ-37033 A · B-E 3 65 PSPZ-55033 B 80 PSPZ-55033 B

A = For 50 Hz B = 60 Hz

Features

● Ultra low noise

By the hybrid (cast molded and resin integrally molded casing) structure, we achieved the effect of sound absorption performance of cast iron and realized super low noise.

● High efficiency · Energy saving

By integrally optimizing the motor and pump, high efficiency and energy saving are realized.

● Long service life · High reliability

A material excellent in corrosion resistance is used for the wetted part, and a high pressure resistance by a hybrid structure in which the casting (outer shell) and the resin (inner wetted part) are integrated with each other is used for the pump casing and the conventional product Reliability was improved by the structure of the shaft sealing part.

● High maintenance

Improved maintainability because it has a structure that makes it easy to fix the shaft when detaching the impeller for mechanical seal replacement.

please note

* Since the motor protector is not mounted on this model (excluding 50 PSPZ - 22033 A), install an overload protection device (circuit breaker) separately. Set the current setting value of the overload protection device to the rated current value indicated on the pump nameplate.
