Sanso Circulation pump PHZ
25 PHZ-2021 A · B 25 PHZ-2023 A · B 40 PHZ-4021 A · B 40 PHZ-4023 A · B 50 PHS-7523 A · B 50 PHS-15023 A · B-E 3 65 PHZ-22023 A · B-E 3
A = For 50 Hz B = 60 Hz
PH Mechanical Seal Type
RoHS compliant product
PH-533 A 3 · B 3 PH-1023 A 2 · B 2
A = For 50 Hz B = 60 Hz
Features
● Outdoor installation possible
It can be installed outdoors by adopting the fully closed external fan outward motor.

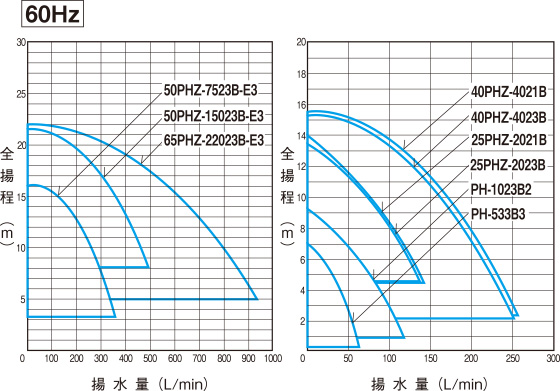

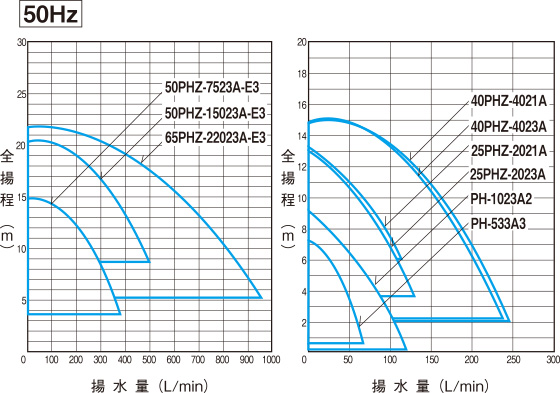

Characteristic
specification

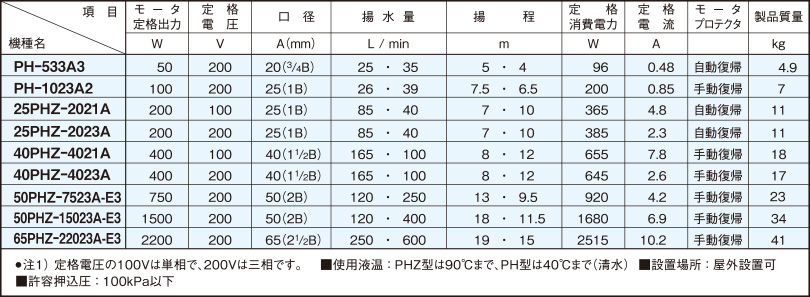

■ 50 Hz

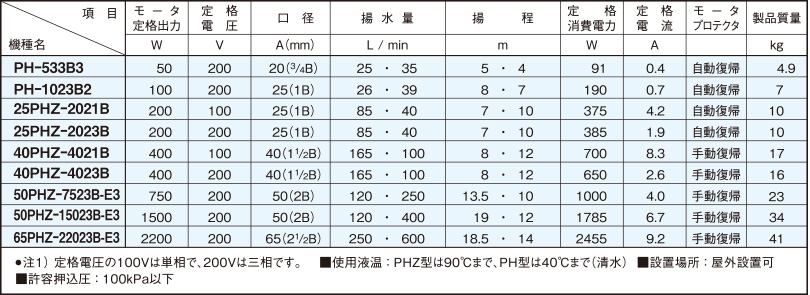

■ 60 Hz

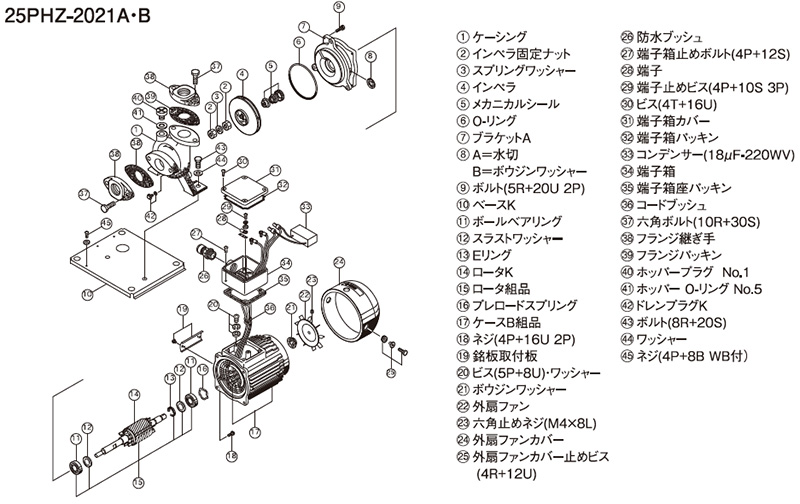

Exploded view

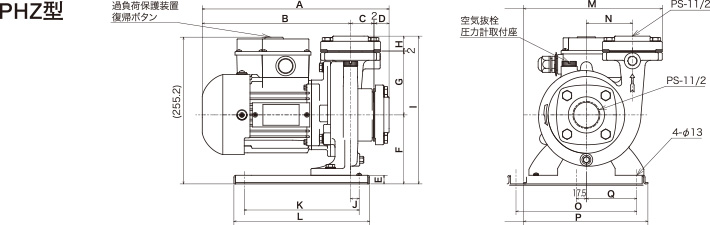

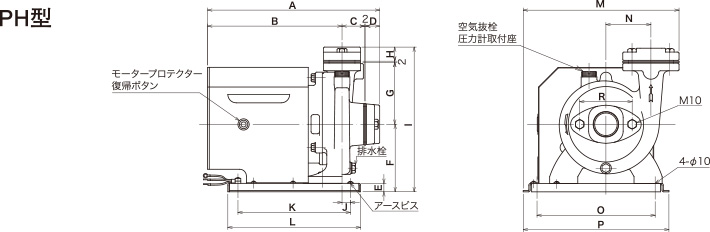

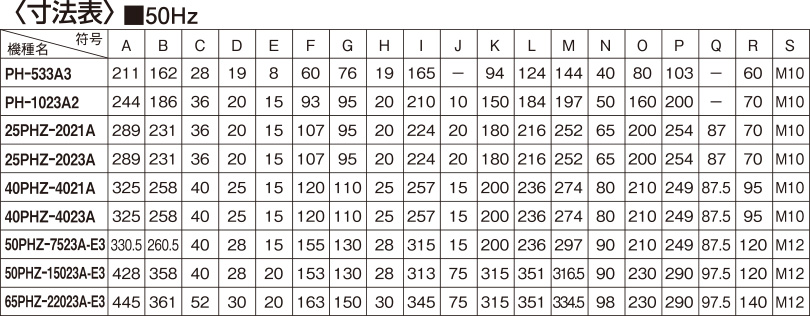

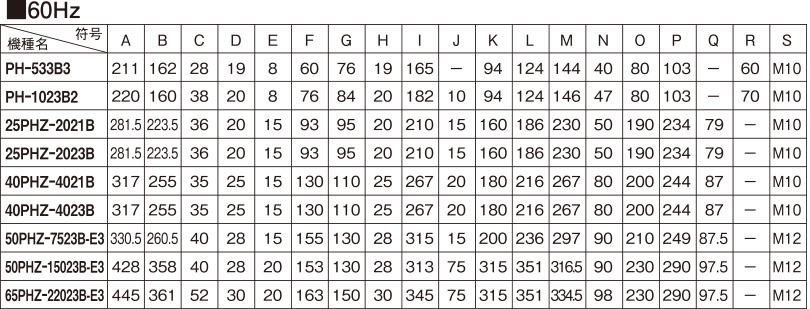

Dimensional drawing
.
