Sanso Circulation pump PH2
PH2-3 / 3AS5.4 PH2-3 / 3AT5.4 40PH2-3 / 3AT5.7-E3 PH2-2 / 2AS6.4 PH2-2 / 2AT6.4 40PH2-2 / 2AT6.7-E3
A = series S = 100 V T = 200 V 5 = 50 Hz 6 = 60 Hz 4 (last character) = 400 W (output) 7 (last character) = 750 W (output)
Features
● Use a fully closed outside fan-out motor
By adopting a fully-closed outside fan-out type motor, the durability of the motor has been upgraded.
● Multi-stage impeller (2/3 steps)
The impeller of the pump part achieves high lift without raising power consumption by converting it to three stages of 50 Hz and two stages of 60 Hz.
Use
● Circulation of cold / hot water · Pumping up
● Various machine sets · General water supply

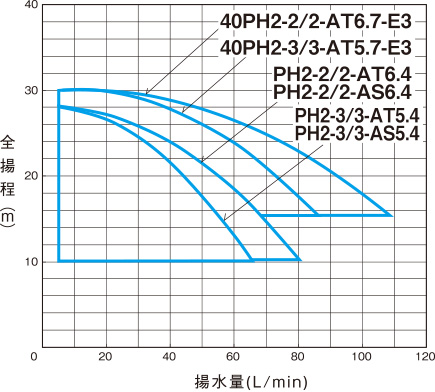

Characteristic

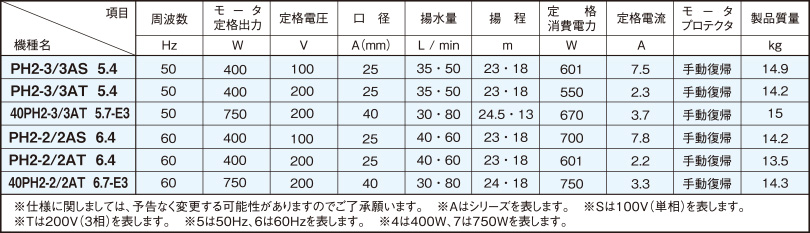

Main Standard Specification

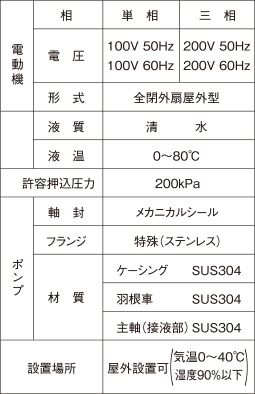

specification

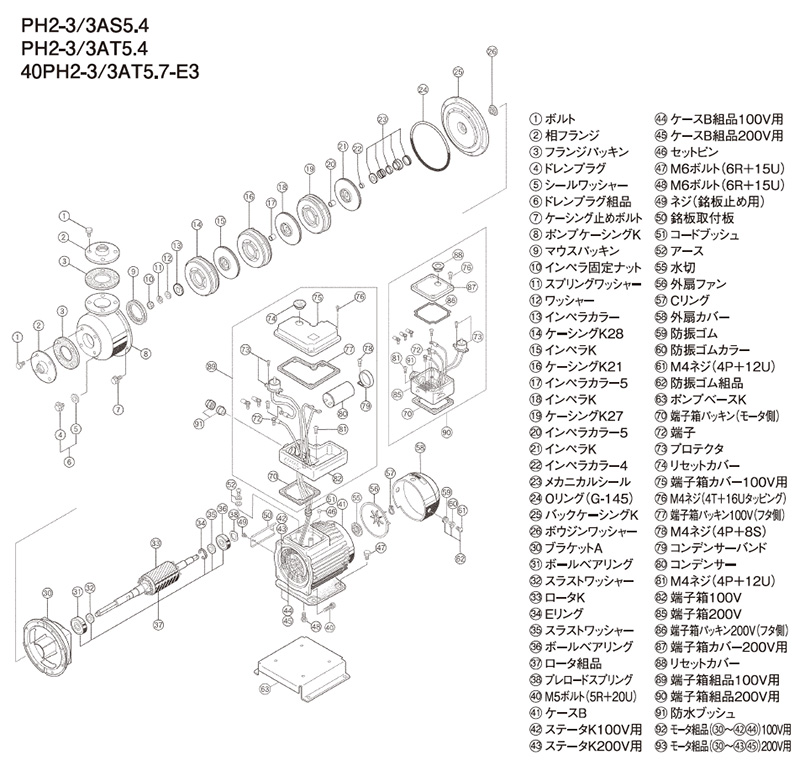

Exploded view

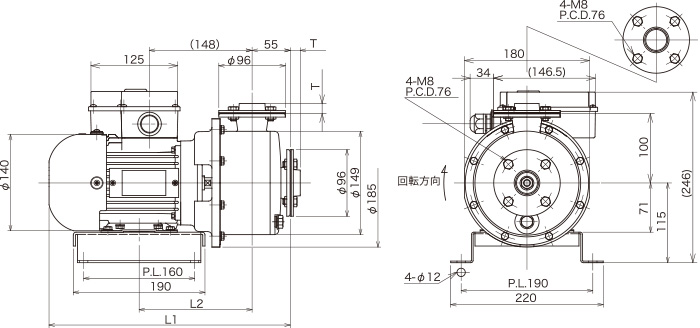

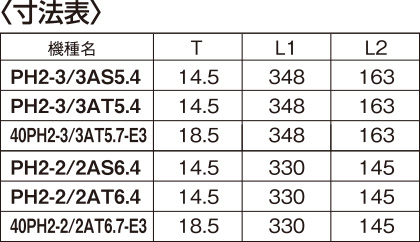

Dimensional drawing
.
