Sanso Circulation pump PSZ
Home > Fluid Machinery > Pump > Sanso Pump > Circulation pump >
Sanso Circulation pump PSZ
25 PSZ-2021 A · B 25 PSZ-2023 A · B 40 PSZ-4021 A · B 40 PSZ-4023 A · B 40 PSZ-7523 A · BE
A = For 50 Hz B = 60 Hz
PS Mechanical Seal Type
RoHS compliant product
PS-1011 A 2 · B 2
A = For 50 Hz B = 60 Hz
Features
● Where to suction is essential
Adopted a sealed impeller. Self-priming time has been shortened.
Because the drain plug is made larger, drainage can be done easily.
The impeller is gun metal, the shaft is stainless steel, and corrosion resistance is excellent.
● Outdoor installation possible
please note
It can not be used for sewage drainage. Because it is a self-priming type, the liquid temperature reaches 40 ° C (Shimizu).

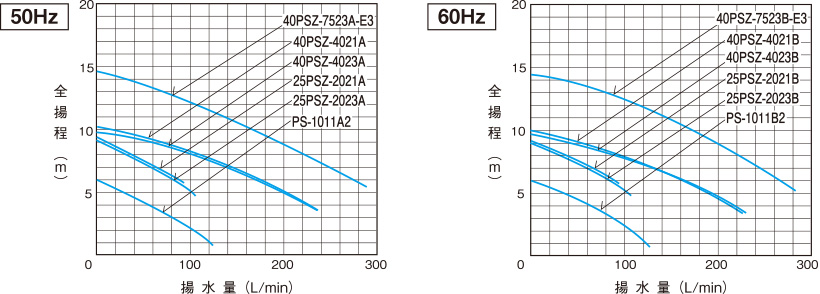

Characteristic
specification

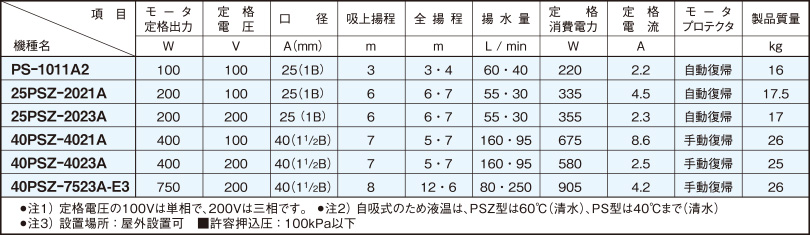

■ 50 Hz

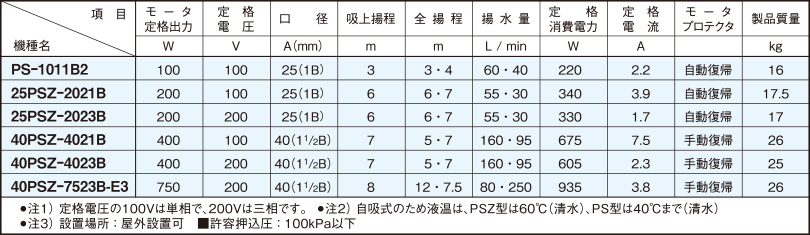

■ 60 Hz

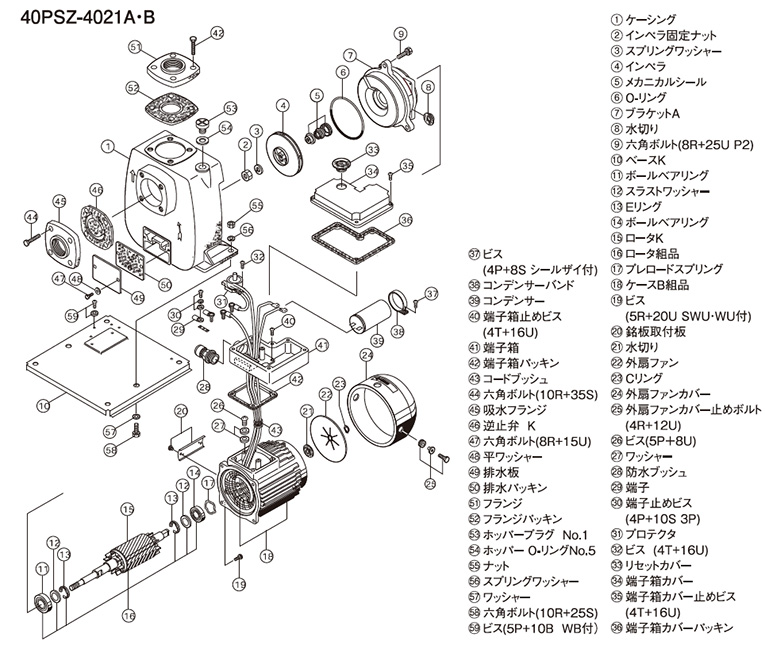

Exploded view

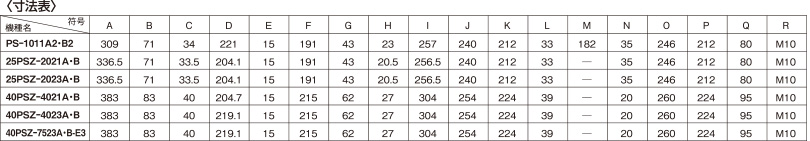

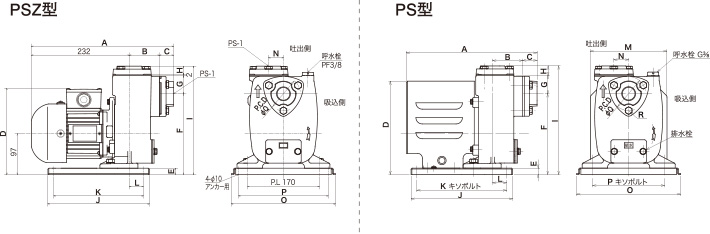

Dimensional drawing
.
